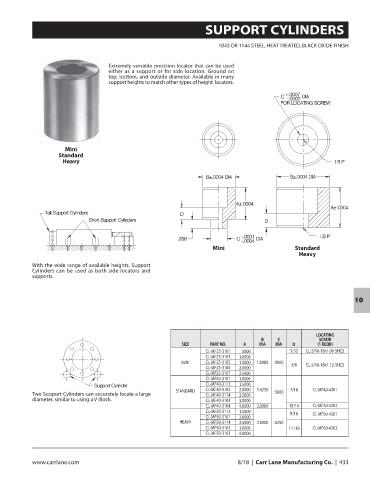

SUPPORT CYLINDERS

1045 OR 1144 STEEL, HEAT TREATED, BLACK OXIDE FINISH

Extremely versatile precision locator that can be used
either as a support or for side location. Ground on
top, bottom, and outside diameter. Available in many
support heights to match other types of height locators.

Mini
Standard
Heavy

Mini Standard
Heavy
With the wide range of available heights, Support
Cylinders can be used as both side locators and
supports.

10

LOCATING
B C SCREW
SIZE PART NO. A DIA DIA D (1 REQD)
CL-MF25-3101 .5000 5/32 CL-5/16-18x1.00-SHCS
CL-MF25-3103 1.0000
MINI CL-MF25-3105 1.5000 1.0000 .5000 3/8 CL-5/16-18x1.12-SHCS
CL-MF25-3106 2.0000
CL-MF25-3107 2.5000
CL-MF40-3101 1.0000
CL-MF40-3113 1.5000
STANDARD CL-MF40-3102 2.0000 1.6250 .5000 7/16 CL-MF40-4301
Two Support Cylinders can accurately locate a large CL-MF40-3114 2.5000
diameter, similar to using a V Block. CL-MF40-3103 3.0000
CL-MF40-3104 4.0000 2.0000 15/16 CL-MF40-4302
CL-MF50-3113 1.5000 9/16 CL-MF50-4301
CL-MF50-3101 2.0000
HEAVY CL-MF50-3114 2.5000 2.0000 .6250
CL-MF50-3102 3.0000 1-1/16 CL-MF50-4302
CL-MF50-3103 4.0000
