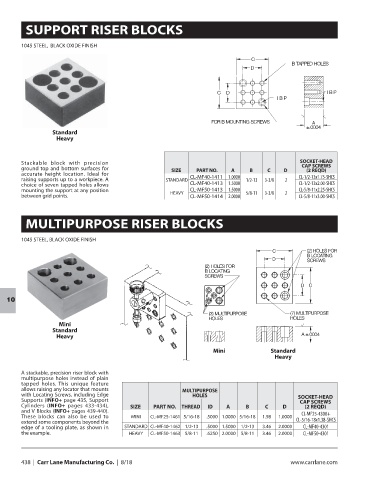

SUPPORT RISER BLOCKS

1045 STEEL, BLACK OXIDE FINISH

Standard
Heavy

Stackable block with precision SOCKET-HEAD
ground top and bottom surfaces for SIZE PART NO. A B C D CAP SCREWS
(2 REQD)
accurate height location. Ideal for
raising supports up to a workpiece. A STANDARD CL-MF40-1411 1.0000 1/2-13 3-3/8 2 CL-1/2-13x1.75-SHCS
choice of seven tapped holes allows CL-MF40-1413 1.5000 CL-1/2-13x2.00-SHCS
mounting the support at any position HEAVY CL-MF50-1413 1.5000 CL-5/8-11x2.25-SHCS
between grid points. CL-MF50-1414 2.0000 5/8-11 3-3/8 2 CL-5/8-11x3.00-SHCS

MULTIPURPOSE RISER BLOCKS

1045 STEEL, BLACK OXIDE FINISH

10

Mini
Standard
Heavy

Mini Standard
Heavy

A stackable, precision riser block with
multipurpose holes instead of plain
tapped holes. This unique feature
allows raising any locator that mounts MULTIPURPOSE
with Locating Screws, including Edge HOLES SOCKET-HEAD
Supports (INFO+ page 435, Support CAP SCREWS
Cylinders (INFO+ pages 433-434), SIZE PART NO. THREAD ID A B C D (2 REQD)
and V Blocks (INFO+ pages 439-440). CL-MF25-4300+
These blocks can also be used to MINI CL-MF25-1461 5/16-18 .5000 1.0000 5/16-18 1.98 1.0000
extend some components beyond the CL-5/16-18x1.38-SHCS
edge of a tooling plate, as shown in STANDARD CL-MF40-1462 1/2-13 .5000 1.5000 1/2-13 3.46 2.0000 CL-MF40-4301
the example. HEAVY CL-MF50-1463 5/8-11 .6250 2.0000 5/8-11 3.46 2.0000 CL-MF50-4301

438 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
