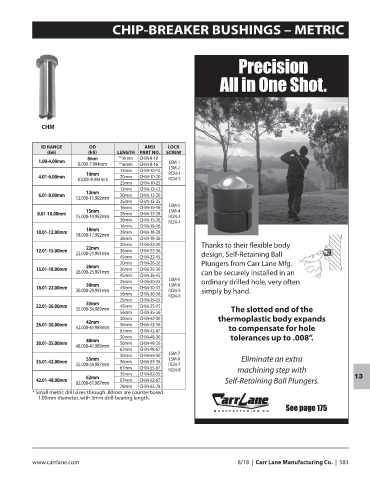

Page 585 - CarrLaneCatalog_2019ed-c.pdf

CHIP-BREAKER BUSHINGS – METRIC

Precision

All in One Shot.

CHM

ID RANGE OD ANSI LOCK
(G6) (h5) LENGTH PART NO. SCREW
8mm *10mm CHM-8-10
1.00-4.00mm LSM-1
8.000-7.994mm *16mm CHM-8-16
LSM-2
12mm CHM-10-12
10mm RCM-1
4.01-6.00mm 20mm CHM-10-20
10.000-9.994mm RCM-2
25mm CHM-10-25
12mm CHM-12-12
12mm
6.01-8.00mm 20mm CHM-12-20
12.000-11.992mm
25mm CHM-12-25
LSM-3
16mm CHM-15-16
15mm LSM-4
8.01-10.00mm 28mm CHM-15-28
15.000-14.992mm RCM-3
36mm CHM-15-36 RCM-4
16mm CHM-18-16
18mm
10.01-12.00mm 28mm CHM-18-28
18.000-17.992mm
36mm CHM-18-36
20mm CHM-22-20 Thanks to their flexible body
22mm
12.01-15.00mm 36mm CHM-22-36
22.000-21.991mm design, Self-Retaining Ball
45mm CHM-22-45
20mm CHM-26-20 Plungers from Carr Lane Mfg.
26mm
15.01-18.00mm 36mm CHM-26-36
26.000-25.991mm can be securely installed in an
45mm CHM-26-45
25mm CHM-30-25 LSM-5 ordinary drilled hole, very often
30mm LSM-6
18.01-22.00mm 45mm CHM-30-45
30.000-29.991mm RCM-5 simply by hand.
56mm CHM-30-56
RCM-6
25mm CHM-35-25
35mm
22.01-26.00mm 45mm CHM-35-45
35.000-34.989mm The slotted end of the
56mm CHM-35-56
30mm CHM-42-30 thermoplastic body expands
42mm
26.01-30.00mm 56mm CHM-42-56
42.000-41.989mm to compensate for hole
67mm CHM-42-67
30mm CHM-48-30 tolerances up to .008”.
48mm
30.01-35.00mm 56mm CHM-48-56
48.000-47.989mm
67mm CHM-48-67
30mm CHM-55-30 LSM-7
55mm LSM-8 Eliminate an extra
35.01-42.00mm 56mm CHM-55-56
55.000-54.987mm RCM-7
67mm CHM-55-67
RCM-8 machining step with
35mm CHM-62-35
62mm 13
42.01-48.00mm 67mm CHM-62-67 Self-Retaining Ball Plungers.
62.000-61.987mm
78mm CHM-62-78
* Small metric drill sizes through .80mm are counterbored
1.00mm diameter, with 3mm drill-bearing length.
See page 175
www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 583
