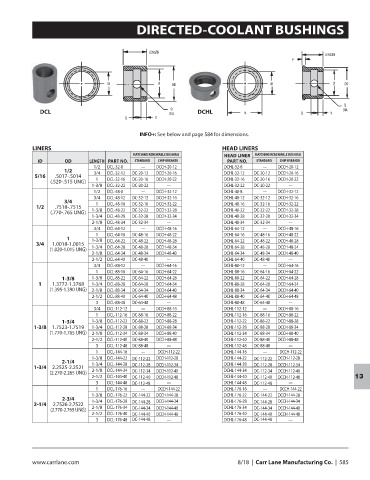

DIRECTED-COOLANT BUSHINGS

LENGTH
LENGTH
P

ID U OD ID U OD

Q
Q DIA
DCL DIA DCHL N Q V
Q V

INFO+: See below and page 584 for dimensions.

LINERS HEAD LINERS
MATCHING RENEWABLE BUSHING HEAD LINER MATCHING RENEWABLE BUSHING
ID OD LENGTH PART NO. STANDARD CHIP BREAKER PART NO. STANDARD CHIP BREAKER
1/2 DCL-32-8 — DCCH-20-12 DCHL-32-8 — DCCH-20-12
1/2 3/4 DCL-32-12 DC-20-12 DCCH-20-16 DCHL-32-12 DC-20-12 DCCH-20-16
5/16 .5017-.5014
(.520-.515 UNG) 1 DCL-32-16 DC-20-16 DCCH-20-22 DCHL-32-16 DC-20-16 DCCH-20-22
1-3/8 DCL-32-22 DC-20-22 — DCHL-32-22 DC-20-22 —
1/2 DCL-48-8 — DCCH-32-12 DCHL-48-8 — DCCH-32-12
3/4 DCL-48-12 DC-32-12 DCCH-32-16 DCHL-48-12 DC-32-12 DCCH-32-16
3/4 1 DCL-48-16 DC-32-16 DCCH-32-22 DCHL-48-16 DC-32-16 DCCH-32-22
1/2 .7518-.7515 1-3/8 DCL-48-22 DC-32-22 DCCH-32-28 DCHL-48-22 DC-32-22 DCCH-32-28
(.770-.765 UNG)
1-3/4 DCL-48-28 DC-32-28 DCCH-32-34 DCHL-48-28 DC-32-28 DCCH-32-34
2-1/8 DCL-48-34 DC-32-34 — DCHL-48-34 DC-32-34 —
3/4 DCL-64-12 — DCCH-48-16 DCHL-64-12 — DCCH-48-16
1 DCL-64-16 DC-48-16 DCCH-48-22 DCHL-64-16 DC-48-16 DCCH-48-22
1 1-3/8 DCL-64-22 DC-48-22 DCCH-48-28 DCHL-64-22 DC-48-22 DCCH-48-28
3/4 1.0018-1.0015 1-3/4 DCL-64-28 DC-48-28 DCCH-48-34 DCHL-64-28 DC-48-28 DCCH-48-34
(1.020-1.015 UNG)
2-1/8 DCL-64-34 DC-48-34 DCCH-48-40 DCHL-64-34 DC-48-34 DCCH-48-40
2-1/2 DCL-64-40 DC-48-40 — DCHL-64-40 DC-48-40 —
3/4 DCL-88-12 — DCCH-64-16 DCHL-88-12 — DCCH-64-16
1 DCL-88-16 DC-64-16 DCCH-64-22 DCHL-88-16 DC-64-16 DCCH-64-22
1-3/8 1-3/8 DCL-88-22 DC-64-22 DCCH-64-28 DCHL-88-22 DC-64-22 DCCH-64-28
1 1.3772-1.3768 1-3/4 DCL-88-28 DC-64-28 DCCH-64-34 DCHL-88-28 DC-64-28 DCCH-64-34
(1.395-1.390 UNG) 2-1/8 DCL-88-34 DC-64-34 DCCH-64-40 DCHL-88-34 DC-64-34 DCCH-64-40
2-1/2 DCL-88-40 DC-64-40 DCCH-64-48 DCHL-88-40 DC-64-40 DCCH-64-48
3 DCL-88-48 DC-64-48 — DCHL-88-48 DC-64-48 —
3/4 DCL-112-12 — DCCH-88-16 DCHL-112-12 — DCCH-88-16
1 DCL-112-16 DC-88-16 DCCH-88-22 DCHL-112-16 DC-88-16 DCCH-88-22
1-3/4 1-3/8 DCL-112-22 DC-88-22 DCCH-88-28 DCHL-112-22 DC-88-22 DCCH-88-28
1-3/8 1.7523-1.7519 1-3/4 DCL-112-28 DC-88-28 DCCH-88-34 DCHL-112-28 DC-88-28 DCCH-88-34
(1.770-1.765 UNG) 2-1/8 DCL-112-34 DC-88-34 DCCH-88-40 DCHL-112-34 DC-88-34 DCCH-88-40
2-1/2 DCL-112-40 DC-88-40 DCCH-88-48 DCHL-112-40 DC-88-40 DCCH-88-48
3 DCL-112-48 DC-88-48 — DCHL-112-48 DC-88-48 —
1 DCL-144-16 — DCCH-112-22 DCHL-144-16 — DCCH-112-22
1-3/8 DCL-144-22 DC-112-22 DCCH-112-28 DCHL-144-22 DC-112-22 DCCH-112-28
2-1/4 1-3/4 DCL-144-28 DC-112-28 DCCH-112-34 DCHL-144-28 DC-112-28 DCCH-112-34
1-3/4 2.2525-2.2521 2-1/8 DCL-144-34 DCHL-144-34
(2.270-2.265 UNG) DC-112-34 DCCH-112-40 DC-112-34 DCCH-112-40
2-1/2 DCL-144-40 DC-112-40 DCCH-112-48 DCHL-144-40 DC-112-40 DCCH-112-48 13
3 DCL-144-48 DC-112-48 — DCHL-144-48 DC-112-48 —
1 DCL-176-16 — DCCH-144-22 DCHL-176-16 — DCCH-144-22
1-3/8 DCL-176-22 DC-144-22 DCCH-144-28 DCHL-176-22 DC-144-22 DCCH-144-28
2-3/4 1-3/4 DCL-176-28 DC-144-28 DCCH-144-34 DCHL-176-28 DC-144-28 DCCH-144-34
2-1/4 2.7526-2.7522 2-1/8 DCL-176-34 DCHL-176-34
(2.770-2.765 UNG) DC-144-34 DCCH-144-40 DC-144-34 DCCH-144-40
2-1/2 DCL-176-40 DC-144-40 DCCH-144-48 DCHL-176-40 DC-144-40 DCCH-144-48
3 DCL-176-48 DC-144-48 — DCHL-176-48 DC-144-48 —
