P. 589

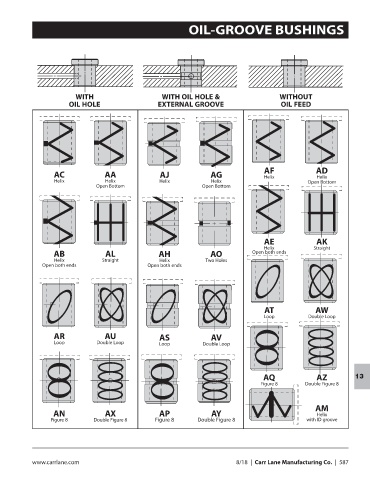

OIL-GROOVE BUSHINGS
WITH WITH OIL HOLE & WITHOUT
OIL HOLE EXTERNAL GROOVE OIL FEED
AF AD
AC AA AJ AG Helix Helix
Helix Helix Helix Helix Open Bottom
Open Bottom Open Bottom
AE AK
Helix Straight
AB AL AH AO Open both ends
Helix Straight Helix Two Holes
Open both ends Open both ends
AT AW
Loop Double Loop
AR AU AS AV
Loop Double Loop Loop Double Loop
AQ AZ 13
Figure 8 Double Figure 8
AM
AN AX AP AY Helix
Figure 8 Double Figure 8 Figure 8 Double Figure 8 with ID groove
www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 587
