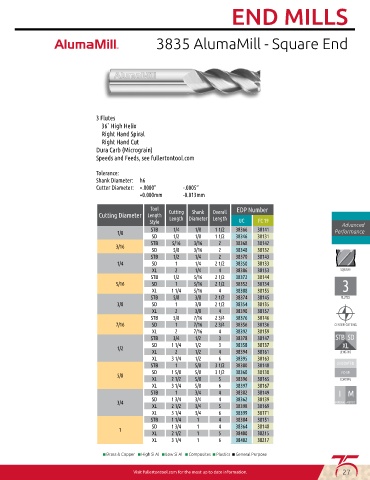

END MILLS

3835 AlumaMill - Square End

3 Flutes
36˚ High Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC FC 19 Advanced
STB 1/4 1/8 1 1/2 38366 38141
1/8 Performance
SD 1/2 1/8 1 1/2 38346 38131
STB 5/16 3/16 2 38368 38142
3/16
SD 5/8 3/16 2 38348 38132
STB 1/2 1/4 2 38370 38143
1/4 SD 1 1/4 2 1/2 38350 38133
XL 2 1/4 4 38386 38153
STB 1/2 5/16 2 1/2 38372 38144
5/16 SD 1 5/16 2 1/2 38352 38134
XL 1 1/4 5/16 4 38388 38155
STB 5/8 3/8 2 1/2 38374 38145
3/8 SD 1 3/8 2 1/2 38354 38135
XL 2 3/8 4 38390 38157
STB 5/8 7/16 2 3/4 38376 38146
7/16 SD 1 7/16 2 3/4 38356 38136
XL 2 7/16 4 38392 38159
STB 3/4 1/2 3 38378 38147
SD 1 1/4 1/2 3 38358 38137
1/2
XL 2 1/2 4 38394 38161
XL 3 1/4 1/2 6 38395 38163
STB 1 5/8 3 1/2 38380 38148 UNCOATED
SD 1 5/8 5/8 3 1/2 38360 38138 FC-19
5/8
XL 2 1/2 5/8 5 38396 38165
XL 3 1/4 5/8 6 38397 38167
STB 1 3/4 4 38382 38149 I M
SD 1 3/4 3/4 4 38362 38139
3/4 IMPERIAL METRIC
XL 2 1/2 3/4 5 38398 38169
XL 3 1/4 3/4 6 38399 38171
STB 1 1/4 1 4 38384 38151
SD 1 3/4 1 4 38364 38140
1
XL 2 1/2 1 5 38400 38215
XL 3 1/4 1 6 38402 38217

■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose

Visit fullertontool.com for the most up to date information. 27
