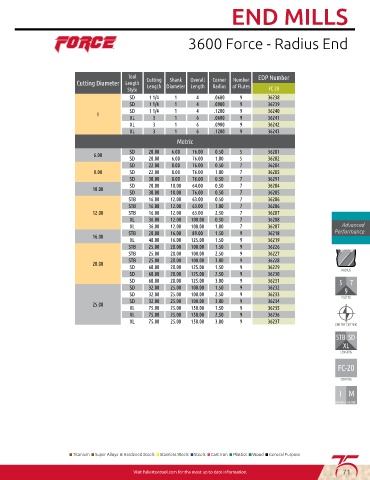

Page 73 - 75th-Online-Anniversary-Catalog

END MILLS

3600 Force - Radius End

Tool Cutting Shank Overall Corner Number EDP Number
Cutting Diameter Length Length Diameter Length Radius of Flutes
Style FC 20
SD 1 1/4 1 4 .0600 9 36238
SD 1 1/4 1 4 .0900 9 36239
SD 1 1/4 1 4 .1200 9 36240
1
XL 3 1 6 .0600 9 36241
XL 3 1 6 .0900 9 36242
XL 3 1 6 .1200 9 36243
Metric

SD 20.00 6.00 76.00 0.50 5 36281
6.00
SD 20.00 6.00 76.00 1.00 5 36282
SD 22.00 8.00 76.00 0.50 7 36284
8.00 SD 22.00 8.00 76.00 1.00 7 36285
SD 30.00 8.00 76.00 0.50 7 36291
SD 20.00 10.00 64.00 0.50 7 36204
10.00
SD 30.00 10.00 76.00 0.50 7 36205
STB 16.00 12.00 63.00 0.50 7 36286
STB 16.00 12.00 63.00 1.00 7 36206
12.00 STB 16.00 12.00 63.00 2.50 7 36287
XL 36.00 12.00 100.00 0.50 7 36288
XL 36.00 12.00 100.00 1.00 7 36207 Advanced
STB 20.00 16.00 89.00 1.50 9 36218 Performance
16.00
XL 48.00 16.00 125.00 1.50 9 36219
STB 25.00 20.00 100.00 1.50 9 36226
STB 25.00 20.00 100.00 2.50 9 36227
STB 25.00 20.00 100.00 3.00 9 36228
20.00
SD 60.00 20.00 125.00 1.50 9 36229
SD 60.00 20.00 125.00 2.50 9 36230
SD 60.00 20.00 125.00 3.00 9 36231
SD 32.00 25.00 100.00 1.50 9 36232
SD 32.00 25.00 100.00 2.50 9 36233
SD 32.00 25.00 100.00 3.00 9 36234
25.00
XL 75.00 25.00 150.00 1.50 9 36235
XL 75.00 25.00 150.00 2.50 9 36236
XL 75.00 25.00 150.00 3.00 9 36237

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Plastics ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 71
