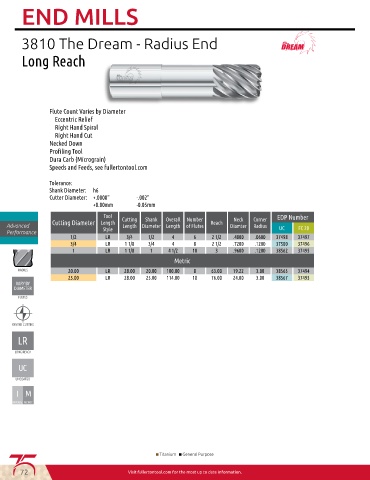

END MILLS

3810 The Dream - Radius End

Long Reach

Flute Count Varies by Diameter
Eccentric Relief
Right Hand Spiral
Right Hand Cut
Necked Down
Profiling Tool
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Number Reach Neck Corner
Advanced Length Diameter Length of Flutes Diamter Radius UC FC 20
Performance Style
1/2 LR 3/4 1/2 4 6 2 1/2 .4800 .0600 37498 37497
3/4 LR 1 1/8 3/4 4 8 2 1/2 .7200 .1200 37500 37496
1 LR 1 1/8 1 4 1/2 10 3 .9600 .1200 38562 37495
Metric
20.00 LR 28.00 20.00 100.00 8 63.00 19.22 3.00 38565 37494
25.00 LR 28.00 25.00 114.00 10 76.00 24.00 3.00 38567 37493

UNCOATED
I M

IMPERIAL METRIC

■ Titanium ■ General Purpose

72 Visit fullertontool.com for the most up to date information.
