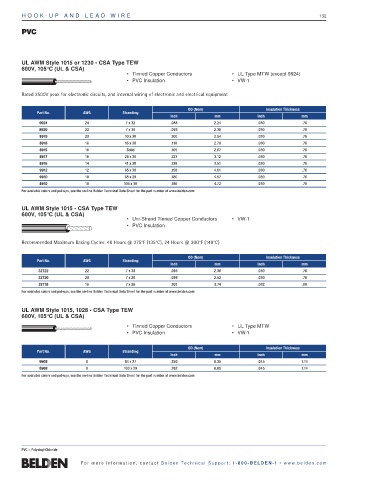

H O O K - U P A N D LE A D WIRE 132

PVC

UL AWM Style 1015 or 1230 • CSA Type TEW
600V, 105°C (UL & CSA)
• Tinned Copper Conductors • UL Type MTW (except 9924)
• PVC Insulation • VW-1

Rated 2500V peak for electronic circuits, and internal wiring of electronic and electrical equipment

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
9924 24 7 x 32 .088 2.24 .030 .76
8920 22 7 x 30 .093 2.36 .030 .76
8919 20 10 x 30 .100 2.54 .030 .76
8918 18 16 x 30 .110 2.79 .030 .76
8915 18 Solid .105 2.67 .030 .76
8917 16 26 x 30 .123 3.12 .030 .76
8916 14 41 x 30 .138 3.51 .030 .76
9912 12 65 x 30 .158 4.01 .030 .76
9910 10 65 x 28 .180 4.57 .030 .76
8910 10 105 x 30 .186 4.72 .030 .76
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

UL AWM Style 1015 • CSA Type TEW
600V, 105°C (UL & CSA)
• Uni-Strand Tinned Copper Conductors • VW-1
• PVC Insulation

Recommended Maximum Baking Cycles: 48 Hours @ 275°F (135°C), 24 Hours @ 300°F (149°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
32722 22 7 x 30 .093 2.36 .030 .76
32720 20 7 x 28 .099 2.52 .030 .76
32718 18 7 x 26 .108 2.74 .032 .80
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

UL AWM Style 1015, 1028 • CSA Type TEW
600V, 105°C (UL & CSA)
• Tinned Copper Conductors • UL Type MTW
• PVC Insulation • VW-1

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
9908 8 84 x 27 .250 6.35 .045 1.14
8908 8 133 x 29 .262 6.65 .045 1.14
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

PVC = Polyvinyl Chloride
