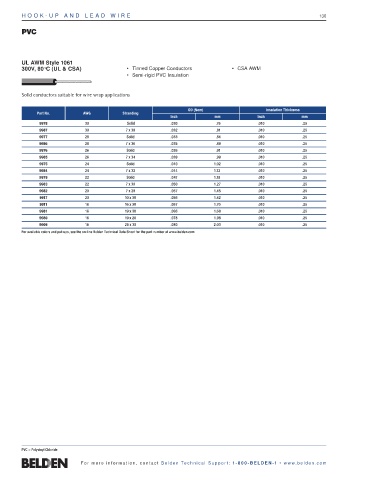

H O O K - U P A N D LE A D WIRE 130

PVC

UL AWM Style 1061
300V, 80°C (UL & CSA) • Tinned Copper Conductors • CSA AWM
• Semi-rigid PVC Insulation

Solid conductors suitable for wire wrap applications

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
9978 30 Solid .030 .76 .010 .25
9987 30 7 x 38 .032 .81 .010 .25
9977 28 Solid .033 .84 .010 .25
9986 28 7 x 36 .035 .89 .010 .25
9976 26 Solid .036 .91 .010 .25
9985 26 7 x 34 .039 .99 .010 .25
9975 24 Solid .040 1.02 .010 .25
9984 24 7 x 32 .044 1.12 .010 .25
9979 22 Solid .047 1.19 .010 .25
9983 22 7 x 30 .050 1.27 .010 .25
9982 20 7 x 28 .057 1.45 .010 .25
9917 20 10 x 30 .056 1.42 .010 .25
9911 18 16 x 30 .067 1.70 .010 .25
9981 18 19 x 30 .066 1.68 .010 .25
9980 16 19 x 28 .078 1.98 .010 .25
9909 16 26 x 30 .080 2.03 .010 .25
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

PVC = Polyvinyl Chloride
