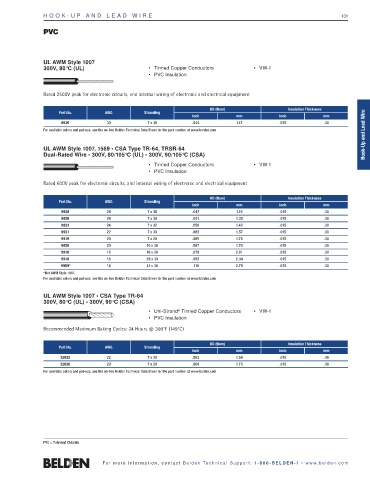

H O O K - U P A N D LE A D WIRE 131

PVC

UL AWM Style 1007
300V, 80°C (UL) • Tinned Copper Conductors • VW-1
• PVC Insulation

Rated 2500V peak for electronic circuits, and internal wiring of electronic and electrical equipment

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
9930 30 7 x 38 .044 1.12 .015 .38
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com Hook-Up and Lead Wire

UL AWM Style 1007, 1569 • CSA Type TR-64, TRSR-64
Dual-Rated Wire • 300V, 80/105°C (UL) • 300V, 90/105°C (CSA)

• Tinned Copper Conductors • VW-1
• PVC Insulation
Rated 600V peak for electronic circuits, and internal wiring of electronic and electrical equipment

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
9928 28 7 x 36 .047 1.19 .015 .38
9926 26 7 x 34 .051 1.30 .015 .38
9923 24 7 x 32 .056 1.42 .015 .38
9921 22 7 x 30 .062 1.57 .015 .38
9919 20 7 x 28 .069 1.75 .015 .38
9920 20 10 x 30 .067 1.70 .015 .38
9918 18 16 x 30 .079 2.01 .015 .38
9916 16 26 x 30 .092 2.34 .015 .38
9989* 14 41 x 30 .110 2.79 .015 .38
*Not AWM Style 1007.
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

UL AWM Style 1007 • CSA Type TR-64
300V, 80°C (UL) • 300V, 90°C (CSA)
• Uni-Strand Tinned Copper Conductors • VW-1
®
• PVC Insulation
Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
32822 22 7 x 30 .062 1.58 .015 .38
32820 20 7 x 28 .068 1.73 .015 .38
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
