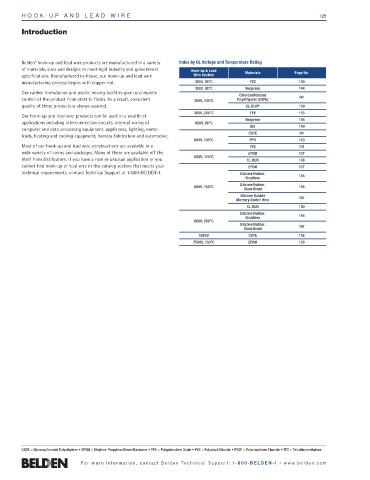

H O O K - U P A N D LE A D WIRE 128

Introduction

®
Belden hook-up and lead wire products are manufactured in a variety Index by UL Voltage and Temperature Rating
of materials, sizes and designs to meet rigid industry and government Hook-up & Lead
specifications. Manufactured in-house, our hook-up and lead wire Wire Section Materials Page No.
manufacturing process begins with copper rod. 300V, 80°C PVC 130
300V, 90°C Neoprene 144
Our rubber formulation and plastic mixing facilities give us complete
Chlorosulfonated
control of the product from start to finish. As a result, consistent 300V, 105°C Polyethylene (CSPE) 141
quality of these products is always assured. XL-DUR ® 139
300V, 200°C TFE 135
Our hook-up and lead wire products can be used in a wealth of
Neoprene 144
applications including interconnection circuits, internal wiring of 600V, 90°C
SIS 140
computer and data processing equipment, appliances, lighting, motor
CSPE 141
leads, heating and cooling equipment, harness fabrication and automotive.
600V, 105°C PPO 143
Most of our hook-up and lead wire constructions are available in a PVC 131
wide variety of colors and packages. Many of these are available off the EPDM 137
600V, 125°C
shelf from distributors. If you have a new or unusual application or you XL-DUR 138
cannot find hook-up or lead wire in this catalog section that meets your EPDM 137
technical requirements, contact Technical Support at 1-800-BELDEN-1. Silicone Rubber,
Braidless 145
Silicone Rubber,
600V, 150°C 146
Glass Braid
Silicone Rubber
Mercury Switch Wire 147
XL-DUR 140
Silicone Rubber, 145
Braidless
600V, 200°C
Silicone Rubber, 147
Glass Braid
5000V CSPE 142
7500V, 150°C EPDM 138

CSPE = Chlorosulfonated Polyethylene • EPDM = Ethylene-Propylene Diene Elastomer • PPO = Polyphenylene Oxide • PVC = Polyvinyl Chloride • PVDF = Polyvinylidene Fluoride • TFE = Tetrafluoroethylene

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
