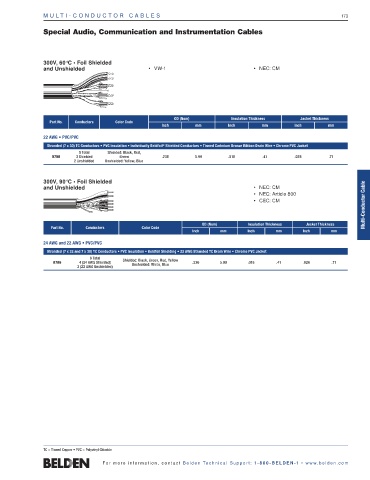

MUL T I - COND UC T O R C A BL E S 173

Special Audio, Communication and Instrumentation Cables

300V, 60°C • Foil Shielded
and Unshielded • VW-1 • NEC: CM

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
22 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • Individually Beldfoil ® Shielded Conductors • Tinned Cadmium Bronze Ribbon Drain Wire • Chrome PVC Jacket
5 Total Shielded: Black, Red,
8788 3 Shielded Green .236 5.99 .016 .41 .028 .71
2 Unshielded Unshielded: Yellow, Blue

300V, 90°C • Foil Shielded
Multi-Conductor Cable
and Unshielded • NEC: CM
• NEC: Article 800
• CEC: CM

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
24 AWG and 22 AWG • PVC/PVC
Stranded (7 x 32 and 7 x 30) TC Conductors • PVC Insulation • Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Chrome PVC Jacket
6 Total Shielded: Black, Green, Red, Yellow
8786 4 (24 AWG Shielded) Unshielded: White, Blue .236 5.99 .016 .41 .028 .71
2 (22 AWG Unshielded)

TC = Tinned Copper • PVC = Polyvinyl Chloride
