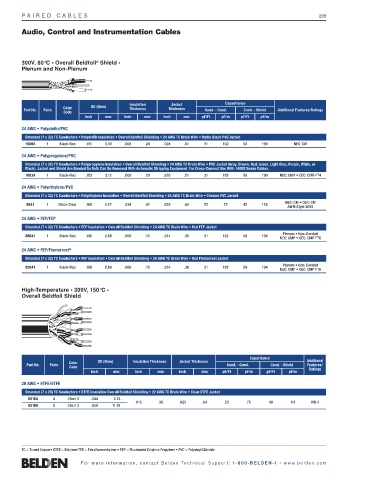

PA I R E D C A B L E S 208

Audio, Control and Instrumentation Cables

®
300V, 80°C • Overall Beldfoil Shield •
Plenum and Non-Plenum

Insulation Jacket Capacitance
OD (Nom)
Color Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
24 AWG • Polyolefin/PVC
Stranded (7 x 32) TC Conductors • Polyolefin Insulation • Overall Beldfoil Shielding • 24 AWG TC Drain Wire • Matte Black PVC Jacket
1508A 1 Black-Red .131 3.33 .008 .20 .024 .61 31 102 58 190 NEC: CM

24 AWG • Polypropylene/PVC
Stranded (7 x 32) TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 24 AWG TC Drain Wire • PVC Jacket (Gray, Brown, Red, Green, Light Blue, Purple, White, or
Black). Jacket and Shield Are Bonded So Both Can Be Removed With Automatic Stripping Equipment. For Cross-Connect Use With 1408R Snake Cables.
1883A 1 Black-Red .123 3.12 .008 .29 .020 .51 31 102 58 190 NEC: CMR • CEC: CMR FT4
24 AWG • Polyethylene/PVC
Stranded (7 x 32) TC Conductors • Polyethylene Insulation • Overall Beldfoil Shielding • 24 AWG TC Drain Wire • Chrome PVC Jacket
NEC: CM • CEC: CM
8641 1 Black-Clear .168 4.27 .016 .41 .025 .64 22 72 42 138
AWM Style 2092
24 AWG • FEP/FEP
Stranded (7 x 32) TC Conductors • FEP Insulation • Overall Beldfoil Shielding • 24 AWG TC Drain Wire • Red FEP Jacket
Plenum • Non-Conduit
88641 1 Black-Red .106 2.69 .006 .15 .014 .36 31 102 59 194
NEC: CMP • CEC: CMP FT6
24 AWG • FEP/Flamarrest ®
Stranded (7 x 32) TC Conductors • FEP Insulation • Overall Beldfoil Shielding • 24 AWG TC Drain Wire • Red Flamarrest Jacket
Plenum • Non-Conduit
82641 1 Black-Red .106 2.69 .006 .15 .014 .36 31 102 59 194
NEC: CMP • CEC: CMP FT6

High-Temperature • 300V, 150°C •
Overall Beldfoil Shield

Capacitance
Color OD (Nom) Insulation Thickness Jacket Thickness Additional
Part No. Pairs Cond. - Cond. Cond. - Shield Features/
Code Ratings
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
20 AWG • ETFE/ETFE
Stranded (7 x 28) TC Conductors • ETFE Insulation Overall Beldfoil Shielding • 22 AWG TC Drain Wire • Clear ETFE Jacket
85164 4 Chart 3 .344 8.74
.015 .38 .025 .64 23 75 40 111 VW-1
85168 8 Chart 3 .439 11.15

TC = Tinned Copper• ETFE = Ethylene/TFE = Tetrafluoroethylene • FEP = Fluorinated Ethylene Propylene • PVC = Polyvinyl Chloride
