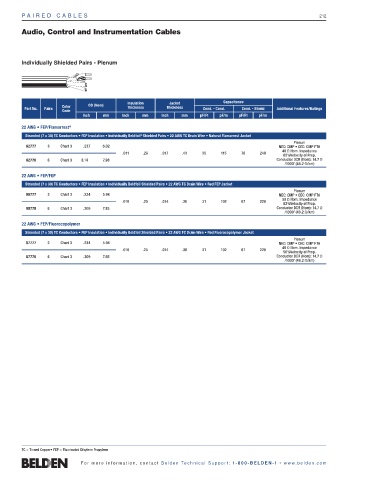

PA I R E D C A B L E S 212

Audio, Control and Instrumentation Cables

Individually Shielded Pairs • Plenum

Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • FEP/Flamarrest ®
Stranded (7 x 30) TC Conductors • FEP Insulation • Individually Beldfoil ® Shielded Pairs • 22 AWG TC Drain Wire • Natural Flamarrest Jacket
Plenum
82777 3 Chart 3 .237 6.02 NEC: CMP • CEC: CMP FT6
46 Ω Nom. Impedance
.011 .28 .017 .43 35 115 76 249
62%Velocity of Prop.
82778 6 Chart 3 3.14 7.98 Conductor DCR (Nom): 14.7 Ω
/1000’ (48.2 Ω/km)
22 AWG • FEP/FEP
Stranded (7 x 30) TC Conductors • FEP Insulation • Individually Beldfoil Shielded Pairs • 22 AWG TC Drain Wire • Red FEP Jacket
Plenum
88777 3 Chart 3 .234 5.94 NEC: CMP • CEC: CMP FT6
50 Ω Nom. Impedance
.010 .25 .014 .36 31 102 67 220
62%Velocity of Prop.
88778 6 Chart 3 .309 7.85 Conductor DCR (Nom): 14.7 Ω
/1000’ (48.2 Ω/km)
22 AWG • FEP/Fluorocopolymer
Stranded (7 x 30) TC Conductors • FEP Insulation • Individually Beldfoil Shielded Pairs • 22 AWG TC Drain Wire • Red Fluorocopolymer Jacket
Plenum
87777 3 Chart 3 .234 5.94 NEC: CMP • CEC: CMP FT6
46 Ω Nom. Impedance
.010 .25 .014 .36 31 102 67 220
50%Velocity of Prop.
87778 6 Chart 3 .309 7.85 Conductor DCR (Nom): 14.7 Ω
/1000’ (48.2 Ω/km)

TC = Tinned Copper• FEP = Fluorinated Ethylene Propylene
