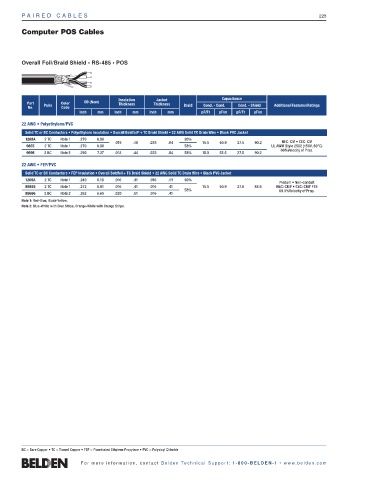

PA I R E D C A B L E S 228

Computer POS Cables

Overall Foil/Braid Shield • RS-485 • POS

Insulation Jacket Capacitance
Part Pairs Color OD (Nom) Thickness Thickness Braid Cond. - Cond. Cond. - Shield Additional Features/Ratings
No. Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • Polyethylene/PVC
Solid TC or BC Conductors • Polyethylene Insulation • Overall Beldfoil ® + TC Braid Shield • 22 AWG Solid TC Drain Wire • Black PVC Jacket
1268A 2 TC Note 1 .270 6.86 90%
.019 .48 .033 .84 15.5 50.9 27.5 90.2 NEC: CM • CEC: CM
9855 2 TC Note 1 .270 6.86 58% UL AWM Style 2582 (150V, 60°C)
66%Velocity of Prop.
9696 2 BC Note 2 .290 7.37 .018 .44 .033 .84 58% 16.0 52.5 27.5 90.2
22 AWG • FEP/PVC
Solid TC or BC Conductors • FEP Insulation • Overall Beldfoil + TC Braid Shield • 22 AWG Solid TC Drain Wire • Black PVC Jacket
1269A 2 TC Note 1 .240 6.10 .016 .41 .016 .43 90%
Plenum • Non-conduit
89855 2 TC Note 1 .272 6.91 .016 .41 .016 .41 15.5 50.9 27.0 88.6 NEC: CMP • CEC: CMP FT6
58% 69.5%Velocity of Prop.
89696 2 BC Note 2 .262 6.65 .020 .51 .016 .41
Note 1: Red-Blue, Black-Yellow.
Note 2: Blue-White with Blue Stripe, Orange-White with Orange Stripe.

BC = Bare Copper • TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene • PVC = Polyvinyl Chloride
