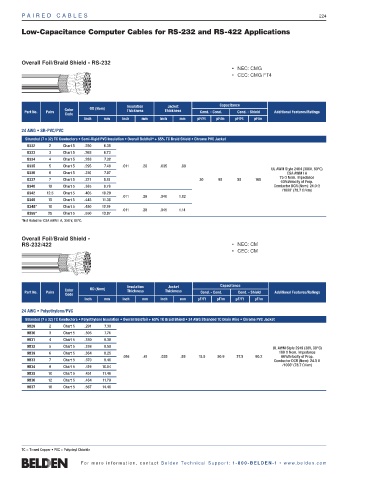

PA I R E D C A B L E S 224
Low-Capacitance Computer Cables for RS-232 and RS-422 Applications
Overall Foil/Braid Shield • RS-232
• NEC: CMG
• CEC: CMG FT4
Insulation Jacket Capacitance
Color OD (Nom) Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
24 AWG • SR-PVC/PVC
Stranded (7 x 32) TC Conductors • Semi-Rigid PVC Insulation • Overall Beldfoil ® + 65% TC Braid Shield • Chrome PVC Jacket
8332 2 Chart 5 .250 6.35
8333 3 Chart 5 .265 6.73
8334 4 Chart 5 .288 7.32
8335 5 Chart 5 .295 7.49 .011 .28 .035 .89
UL AWM Style 2464 (300V, 80°C)
8336 6 Chart 5 .310 7.87 CSA AWM I A
75 Ω Nom. Impedance
8337 7 Chart 5 .321 8.15 30 98 50 165
60%Velocity of Prop.
8340 10 Chart 5 .385 9.78 Conductor DCR (Nom): 24.0 Ω
/1000’ (78.7 Ω/km)
8342 12.5 Chart 5 .405 10.29
.011 .28 .040 1.02
8345 15 Chart 5 .445 11.30
8348* 18 Chart 5 .480 12.19
.011 .28 .045 1.14
8355* 25 Chart 5 .550 13.97
*Not Rated for CSA AWM I A, 300 V, 80°C.
Overall Foil/Braid Shield •
RS-232/422 • NEC: CM
• CEC: CM
Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
24 AWG • Polyethylene/PVC
Stranded (7 x 32) TC Conductors • Polyethylene Insulation • Overall Beldfoil + 65% TC Braid Shield • 24 AWG Stranded TC Drain Wire • Chrome PVC Jacket
9829 2 Chart 5 .291 7.39
9830 3 Chart 5 .305 7.74
9831 4 Chart 5 .330 8.38
9832 5 Chart 5 .338 8.59 UL AWM Style 2919 (30V, 80°C)
9839 6 Chart 5 .364 9.25 100 Ω Nom. Impedance
.016 .41 .035 .89 15.5 50.9 27.5 90.2 66%Velocity of Prop.
9833 7 Chart 5 .370 9.40 Conductor DCR (Nom): 24.0 Ω
9834 9 Chart 5 .419 10.64 /1000’ (78.7 Ω/km)
9835 10 Chart 5 .451 11.46
9836 12 Chart 5 .464 11.79
9837 18 Chart 5 .567 14.40
TC = Tinned Copper • PVC = Polyvinyl Chloride
