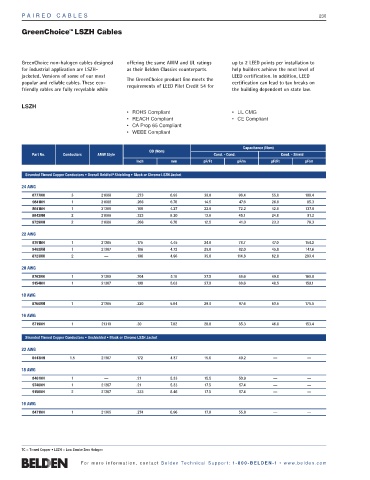

PA I R E D C A B L E S 230

™
GreenChoice LSZH Cables

GreenChoice non-halogen cables designed offering the same AWM and UL ratings up to 2 LEED points per installation to
for industrial application are LSZH- as their Belden Classics counterparts. help builders achieve the next level of
jacketed. Versions of some of our most LEED certification. In addition, LEED
The GreenChoice product line meets the
popular and reliable cables. These eco- certification can lead to tax breaks on
requirements of LEED Pilot Credit 54 for
friendly cables are fully recyclable while the building dependent on state law.

LSZH
• ROHS Compliant • UL CMG
• REACH Compliant • CE Compliant
• CA Prop 65 Compliant
• WEEE Compliant

Capacitance (Nom)
OD (Nom)
Part No. Conductors AMW Style Cond. - Cond. Cond. - Shield
Inch mm pF/Ft pF/m pF/Ft pF/m

Stranded Tinned Copper Conductors • Overall Beldfoil ® Shielding • Black or Chrome LSZH Jacket
24 AWG
8777NH 3 21088 .273 6.93 30.0 98.4 55.0 180.4
9841NH 1 21088 .266 6.76 14.5 47.6 26.0 85.3
8641NH 1 21305 .168 4.27 22.0 72.2 42.0 137.8
9842NH 2 21088 .323 8.20 13.8 45.1 24.8 81.2
9729NH 2 21088 .266 6.76 12.5 41.0 23.3 76.3
22 AWG
8761NH 1 21305 .175 4.45 24.0 78.7 47.0 154.2
9462NH 1 21307 .186 4.72 25.0 82.0 45.0 147.6
8723NH 2 — .196 4.98 35.0 114.8 62.0 203.4

20 AWG
8762NH 1 21305 .204 5.18 27.0 88.6 49.0 160.8
9154NH 1 21307 .198 5.03 27.0 88.6 48.5 159.1
18 AWG
8760NH 1 21305 .220 5.64 29.8 97.6 53.5 175.5

16 AWG
8719NH 1 21310 .30 7.62 26.0 85.3 46.8 153.4

Stranded Tinned Copper Conductors • Unshielded • Black or Chrome LSZH Jacket

22 AWG
8443NH 1.5 21307 .172 4.37 15.0 49.2 — —
18 AWG
8461NH 1 — .21 5.33 15.5 50.9 — —
9740NH 1 21307 .21 5.33 17.5 57.4 — —
9156NH 2 21307 .333 8.46 17.5 57.4 — —

16 AWG
8471NH 1 21305 .274 6.96 17.0 55.8 — —

TC = Tinned Copper • LSZH = Low Smoke Zero Halogen

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
