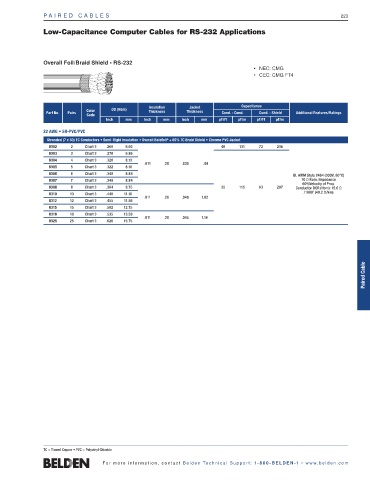

PA I R E D C A B L E S 223

Low-Capacitance Computer Cables for RS-232 Applications

Overall Foil/Braid Shield • RS-232
• NEC: CMG
• CEC: CMG FT4

Capacitance
Insulation Jacket
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • SR-PVC/PVC
Stranded (7 x 30) TC Conductors • Semi-Rigid Insulation • Overall Beldfoil ® + 65% TC Braid Shield • Chrome PVC Jacket
8302 2 Chart 3 .260 6.60 40 131 72 236
8303 3 Chart 3 .270 6.86
8304 4 Chart 3 .320 8.13
.011 .28 .035 .89
8305 5 Chart 3 .322 8.18
8306 6 Chart 3 .348 8.84 UL AWM Style 2464 (300V, 80°C)
8307 7 Chart 3 .348 8.84 70 Ω Nom. Impedance
60%Velocity of Prop.
8308 8 Chart 3 .384 9.75 35 115 63 207 Conductor DCR (Nom): 15.0 Ω
8310 10 Chart 3 .440 11.18 /1000’ (49.2 Ω/km)
.011 .28 .040 1.02
8312 12 Chart 3 .455 11.56
8315 15 Chart 3 .502 12.75
8318 18 Chart 3 .535 13.59
.011 .28 .045 1.14
8325 25 Chart 3 .620 15.75

Paired Cable

TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
