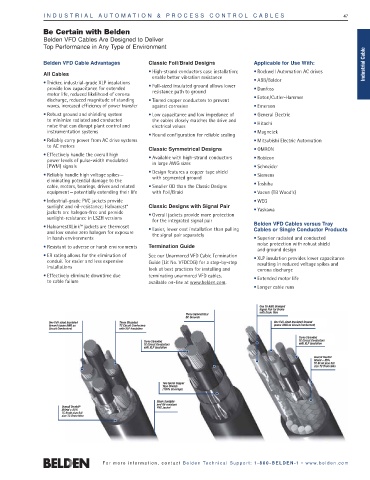

Page 47 - belden

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 47

Be Certain with Belden
Belden VFD Cables Are Designed to Deliver
Top Performance in Any Type of Environment

Belden VFD Cable Advantages Classic Foil/Braid Designs Applicable for Use With: Industrial Cable
• High-strand conductors ease installation; • Rockwell Automation AC drives
All Cables
enable better vibration resistance
• Thicker, industrial-grade XLP insulations • ABB/Baldor
• Full-sized insulated ground allows lower
provide low capacitance for extended • Danfoss
motor life, reduced likelihood of corona resistance path to ground
• Eaton/Cutler-Hammer
discharge, reduced magnitude of standing • Tinned copper conductors to prevent
waves, increased efficiency of power transfer against corrosion • Emerson
• Robust ground and shielding system • Low capacitance and low impedance of • General Electric
to minimize radiated and conducted the cables closely matches the drive and
noise that can disrupt plant control and electrical values • Hitachi
instrumentation systems • Magnetek
• Round configuration for reliable sealing
• Reliably carry power from AC drive systems • Mitsubishi Electric Automation
to AC motors
Classic Symmetrical Designs • OMRON
• Effectively handle the overall high
power levels of pulse-width modulated • Available with high-strand conductors • Robicon
in large AWG sizes
(PWM) signals • Schneider
• Design features a copper tape shield
• Reliably handle high voltage spikes — with segmented ground • Siemens
eliminating potential damage to the
cable, motors, bearings, drives and related • Smaller OD than the Classic Designs • Toshiba
equipment — potentially extending their life with Foil/Braid • Vacon (TB Wood’s)
• Industrial-grade PVC jackets provide • WEG
®
sunlight and oil-resistance; Haloarrest Classic Designs with Signal Pair
jackets are halogen-free and provide • Overall jackets provide more protection • Yaskawa
sunlight-resistance in LSZH versions
for the integrated signal pair
• HaloarrestXLink™ jackets are thermoset • Easier, lower cost installation than pulling Belden VFD Cables versus Tray
and low smoke zero halogen for exposure Cables or Single Conductor Products
the signal pair separately
in harsh environments • Superior radiated and conducted
noise protection with robust shield
• Resistant to adverse or harsh environments Termination Guide
and ground design
• ER rating allows for the elimination of See our Unarmored VFD Cable Termination • XLP insulation provides lower capacitance
conduit for easier and less expensive Guide (Lit No. VFDCDG) for a step-by-step resulting in reduced voltage spikes and
installations
look at best practices for installing and corona discharge
• Effectively eliminate downtime due terminating unarmored VFD cables, • Extended motor life
to cable failure available on-line at www.belden.com.
• Longer cable runs

One 16 AWG Shielded
Signal Pair for Brake
with Drain Wire
Three Symmetrical
BC Grounds
One Full-sized Insulated Three Stranded One Full-sized Insulated Ground
Ground (same AWG as TC Circuit Conductors (same AWG as Circuit Conductors)
Circuit Conductors) with XLP Insulation
Three Stranded
Three Stranded TC Circuit Conductors
TC Circuit Conductors with XLP Insulation
with XLP Insulation
Overall Duofoil
Shield + 85%
TC Braid plus full
size TC Drain Wire
Two Spiral Copper
Tape Shields
(100% Coverage)
Black Sunlight-
and Oil-resistant
Overall Duofoil ® PVC Jacket
Shield + 85%
TC Braid plus full
size TC Drain Wire
