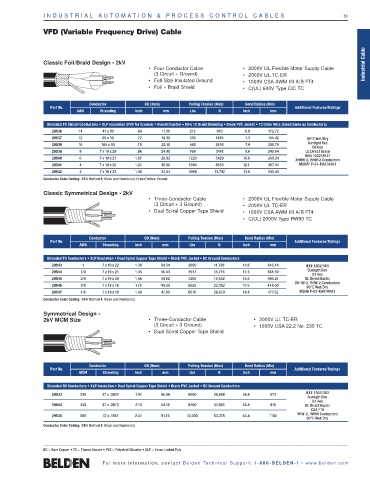

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 51

VFD (Variable Frequency Drive) Cable

Classic Foil/Braid Design • 2kV Industrial Cable
• Four-Conductor Cable • 2000V UL Flexible Motor Supply Cable
(3 Circuit + Ground) • 2000V UL TC-ER
• Full-Size Insulated Ground • 1000V CSA AWM I/II A/B FT4
• Foil + Braid Shield • C(UL) 600V Type CIC TC

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Stranded TC Circuit Conductors • XLP Insulation (PVC for Ground) • Overall Duofoil + 85% TC Braid Shielding • Black PVC Jacket • TC Drain Wire (Sized Same as Conductors)
29536 14 41 x 30 .68 17.30 212 943 6.8 172.72
29537 12 65 x 30 .72 18.30 336 1495 7.3 185.42 90°C Wet/Dry
Sunlight Res
29538 10 105 x 30 .79 20.10 592 2634 7.9 200.70
Oil Res
29539 8 7 x 19 x 29 .96 24.40 768 3418 9.6 243.84 UL Direct Burial
IEEE 1202/3837
29540 6 7 x 19 x 27 1.07 26.92 1220 5429 10.6 269.24
XHHW-2, RHW-2 Conductors
29541 4 7 x 19 x 25 1.21 30.50 1940 8633 12.1 307.34 MSHA* P-07-KA070003
29542 2 7 x 19 x 23 1.36 34.54 3088 13,742 13.6 345.44
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
Classic Symmetrical Design • 2kV
• Three-Conductor Cable • 2000V UL Flexible Motor Supply Cable
(3 Circuit + 3 Ground) • 2000V UL TC-ER
• Dual Spiral Copper Tape Shield • 1000V CSA AWM I/II A/B FT4
• C(UL) 2000V Type RW90 TC

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Stranded TC Conductors • XLP Insulation • Dual Spiral Copper Tape Shield • Black PVC Jacket • BC Ground Conductors
29543 1 7 x 19 x 22 1.36 34.54 2650 11,788 13.6 345.44 IEEE 1202/383
Sunlight Res
29544 1/0 7 x 19 x 21 1.45 36.83 3537 15,733 14.5 368.30
Oil Res
29545 2/0 7 x 19 x 29 1.56 39.62 4200 18,682 15.6 396.24 UL Direct Burial
XHHW-2, RHW-2 Conductors
29546 3/0 7 x 19 x 19 1.75 44.50 5025 22,352 17.5 444.50
90°C Wet/Dry
29547 4/0 7 x 19 x 18 1.88 47.80 6670 29,670 18.8 477.52 MSHA P-07-KA070003
Conductor Color Coding: ICEA Method 4: Black and Numbered.
Symmetrical Design •
2kV MCM Size • Three-Conductor Cable • 2000V UL TC-ER
(3 Circuit + 3 Ground) • 1000V CSA 22.2 No. 230 TC
• Dual Spiral Copper Tape Shield

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
MCM Stranding Inch mm Lbs N Inch mm
Stranded BC Conductors • XLP Insulation • Dual Spiral Copper Tape Shield • Black PVC Jacket • BC Ground Conductors
29533 250 37 x .0822 1.91 48.56 6000 26,688 34.4 873 IEEE 1202/383
Sunlight Res
Oil Res
29534 350 37 x .0973 2.13 54.18 8400 37,363 38.4 975 UL Direct Burial
CSA FT4
RHW-2, RW90 Conductors
29535 500 37 x .1162 2.41 61.16 12,000 53,376 43.4 1102
90°C Wet/Dry
Conductor Color Coding: ICEA Method 4: Black and Numbered.

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
