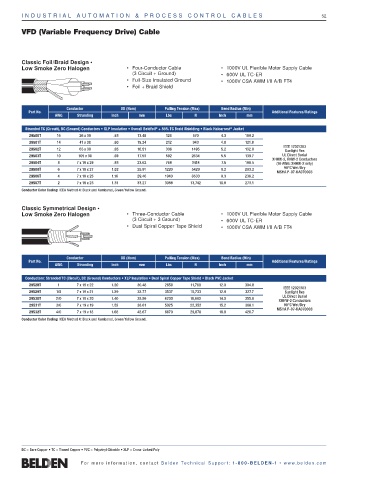

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 52

VFD (Variable Frequency Drive) Cable

Classic Foil/Braid Design •
Low Smoke Zero Halogen • Four-Conductor Cable • 1000V UL Flexible Motor Supply Cable
(3 Circuit + Ground) • 600V UL TC-ER
• Full-Size Insulated Ground • 1000V CSA AWM I/II A/B FT4
• Foil + Braid Shield

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Stranded TC (Circuit), BC (Ground) Conductors • XLP Insulation • Overall Beldfoil ® + 85% TC Braid Shielding • Black Haloarrest ® Jacket
29500T 16 26 x 30 .53 13.46 128 570 4.3 109.2
29501T 14 41 x 30 .60 15.24 212 943 4.8 121.9
IEEE 1202/383
29502T 12 65 x 30 .65 16.51 336 1495 5.2 132.0
Sunlight Res
29503T 10 105 x 30 .69 17.53 592 2634 5.5 139.7 UL Direct Burial
XHHW-2, RHW-2 Conductors
29504T 8 7 x 19 x 29 .93 23.62 768 3418 7.5 190.5 (16 AWG: XHHW-2 only)
90°C Wet/Dry
29505T 6 7 x 19 x 27 1.02 25.91 1220 5429 8.2 203.2
MSHA P-07-KA070003
29506T 4 7 x 19 x 25 1.16 29.46 1940 8633 9.3 236.2
29507T 2 7 x 19 x 23 1.31 33.27 3088 13,742 10.8 273.1
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
Classic Symmetrical Design •
Low Smoke Zero Halogen • Three-Conductor Cable • 1000V UL Flexible Motor Supply Cable
(3 Circuit + 3 Ground) • 600V UL TC-ER
• Dual Spiral Copper Tape Shield • 1000V CSA AWM I/II A/B FT4

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Conductors: Stranded TC (Circuit), BC (Ground) Conductors • XLP Insulation • Dual Spiral Copper Tape Shield • Black PVC Jacket
29528T 1 7 x 19 x 22 1.20 30.48 2650 11,788 12.0 304.8
IEEE 1202/383
29529T 1/0 7 x 19 x 21 1.29 32.77 3537 15,733 12.9 327.7 Sunlight Res
UL Direct Burial
29530T 2/0 7 x 19 x 20 1.40 35.56 4200 18,682 14.0 355.6
XHHW-2 Conductors
29531T 3/0 7 x 19 x 19 1.52 38.61 5025 22,352 15.2 386.1 90°C Wet/Dry
MSHA P-07-KA070003
29532T 4/0 7 x 19 x 18 1.68 42.67 6670 29,670 16.8 426.7
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
