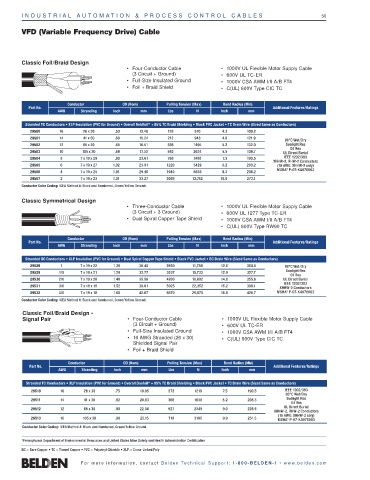

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 50

VFD (Variable Frequency Drive) Cable

Classic Foil/Braid Design
• Four-Conductor Cable • 1000V UL Flexible Motor Supply Cable
(3 Circuit + Ground) • 600V UL TC-ER
• Full-Size Insulated Ground • 1000V CSA AWM I/II A/B FT4
• Foil + Braid Shield • C(UL) 600V Type CIC TC

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Stranded TC Conductors • XLP Insulation (PVC for Ground) • Overall Beldfoil ® + 85% TC Braid Shielding • Black PVC Jacket • TC Drain Wire (Sized Same as Conductors)
29500 16 26 x 30 .53 13.46 128 570 4.3 109.2
29501 14 41 x 30 .60 15.24 212 943 4.8 121.9
90°C Wet/Dry
29502 12 65 x 30 .65 16.51 336 1495 5.2 132.0 Sunlight Res
Oil Res
29503 10 105 x 30 .69 17.53 592 2634 5.5 139.7 UL Direct Burial
29504 8 7 x 19 x 29 .93 23.61 768 3418 7.5 190.5 IEEE 1202/383
XHHW-2, RHW-2 Conductors
29505 6 7 x 19 x 27 1.02 25.91 1220 5429 8.2 203.2 (16 AWG: XHHW-2 only)
MSHA* P-07-KA070003
29506 4 7 x 19 x 25 1.16 29.46 1940 8633 9.3 236.2
29507 2 7 x 19 x 23 1.31 33.27 3088 13,742 10.8 273.1
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
Classic Symmetrical Design
• Three-Conductor Cable • 1000V UL Flexible Motor Supply Cable
(3 Circuit + 3 Ground) • 600V UL 1277 Type TC-ER
• Dual Spiral Copper Tape Shield • 1000V CSA AWM I/II A/B FT4
• C(UL) 600V Type RW90 TC

Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm
Stranded BC Conductors • XLP Insulation (PVC for Ground) • Dual Spiral Copper Tape Shield • Black PVC Jacket • BC Drain Wire (Sized Same as Conductors)
29528 1 7 x 19 x 22 1.20 30.48 2650 11,788 12.0 304.8 90°C Wet/Dry
Sunlight Res
29529 1/0 7 x 19 x 21 1.29 32.77 3537 15,733 12.9 327.7
Oil Res
29530 2/0 7 x 19 x 20 1.40 35.56 4200 18,682 14.0 355.6 UL Direct Burial
IEEE 1202/383
29531 3/0 7 x 19 x 19 1.52 38.61 5025 22,352 15.2 386.1
XHHW-2 Conductors
29532 4/0 7 x 19 x 18 1.68 42.67 6670 29,670 16.8 426.7 MSHA* P-07-KA070003
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
Classic Foil/Braid Design •
Signal Pair • Four-Conductor Cable • 1000V UL Flexible Motor Supply Cable
(3 Circuit + Ground) • 600V UL TC-ER
• Full-Size Insulated Ground • 1000V CSA AWM I/II A/B FT4
• 16 AWG Stranded (26 x 30) • C(UL) 600V Type CIC TC
Shielded Signal Pair
• Foil + Braid Shield
Conductor OD (Nom) Pulling Tension (Max) Bend Radius (Min)
Part No. Additional Features/Ratings
AWG Stranding Inch mm Lbs N Inch mm

Stranded TC Conductors • XLP Insulation (PVC for Ground) • Overall Duofoil ® + 85% TC Braid Shielding • Black PVC Jacket • TC Drain Wire (Sized Same as Conductors)
29510 16 26 x 30 .75 19.05 272 1210 7.5 190.5 IEEE 1202/383
90°C Wet/Dry
29511 14 41 x 30 .82 20.83 368 1638 8.2 208.3 Sunlight Res
Oil Res
UL Direct Burial
29512 12 65 x 30 .90 22.86 527 2345 9.0 228.6
XHHW-2, RHW-2 Conductors
(16 AWG: XHHW-2 only)
29513 10 105 x 30 .99 25.15 718 3195 9.9 251.5
MSHA* P-07-KA070003
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
*Pennsylvania Department of Environmental Resources and United States Mine Safety and Health Administration Certification
BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
