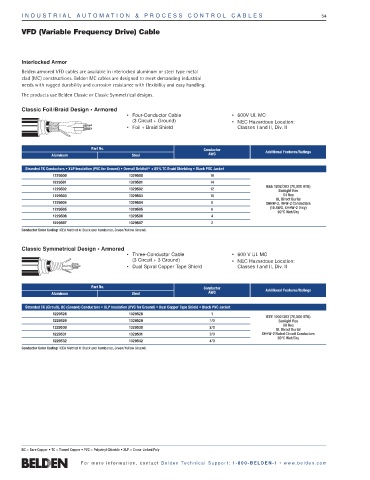

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 54

VFD (Variable Frequency Drive) Cable

Interlocked Armor
Belden armored VFD cables are available in interlocked aluminum or steel type metal
clad (MC) constructions. Belden MC cables are designed to meet demanding industrial
needs with rugged durability and corrosion resistance with flexibility and easy handling.
The products use Belden Classic or Classic Symmetrical designs.

Classic Foil/Braid Design • Armored
• Four-Conductor Cable • 600V UL MC
(3 Circuit + Ground) • NEC Hazardous Location:
• Foil + Braid Shield Classes I and II, Div. II

Part No. Conductor Additional Features/Ratings
Aluminum Steel AWG
Stranded TC Conductors • XLP Insulation (PVC for Ground) • Overall Beldfoil ® + 85% TC Braid Shielding • Black PVC Jacket
1229500 1329500 16
1229501 1329501 14
IEEE 1202/383 (70,000 BTU)
1229502 1329502 12
Sunlight Res
1229503 1329503 10 Oil Res
UL Direct Burial
1229504 1329504 8 XHHW-2, RHW-2 Conductors
(16 AWG, XHHW-2 Only)
1229505 1329505 6
90°C Wet/Dry
1229506 1329506 4
1229507 1329507 2
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.
Classic Symmetrical Design • Armored
• Three-Conductor Cable • 600 V UL MC
(3 Circuit + 3 Ground) • NEC Hazardous Location:
• Dual Spiral Copper Tape Shield Classes I and II, Div. II

Part No.
Conductor Additional Features/Ratings
Aluminum Steel AWG
Stranded TC (Circuit), BC (Ground) Conductors • XLP Insulation (PVC for Ground) • Dual Copper Tape Shield • Black PVC Jacket
1229528 1329528 1
IEEE 1202/383 (70,000 BTU)
1229529 1329529 1/0 Sunlight Res
Oil Res
1229530 1329530 2/0
UL Direct Burial
1229531 1329531 3/0 XHHW-2 Rated Circuit Conductors
90°C Wet/Dry
1229532 1329532 4/0
Conductor Color Coding: ICEA Method 4: Black and Numbered, Green/Yellow Ground.

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
