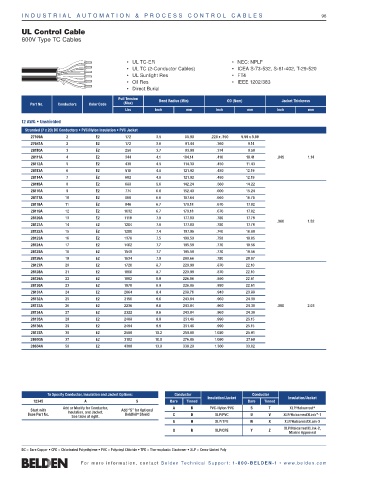

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 96

UL Control Cable
600V Type TC Cables

• UL TC-ER • NEC: NPLF
• UL TC (2-Conductor Cables) • ICEA S-73-532, S-61-402, T-29-520
• UL Sunlight Res • FT4
• Oil Res • IEEE 1202/383
• Direct Burial
Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Conductors Color Code (Max)
Lbs Inch mm Inch mm Inch mm

12 AWG • Unshielded
Stranded (7 x 20) BC Conductors • PVC/Nylon Insulation • PVC Jacket
27109A 2 E2 172 3.5 88.90 .220 x .350 5.59 x 8.89
27641A 2 E2 172 3.6 91.44 .360 9.14
28110A 3 E2 258 3.7 93.98 .374 9.50
28111A 4 E2 344 4.1 104.14 .410 10.41 .045 1.14
28112A 5 E2 430 4.5 114.30 .450 11.43
28113A 6 E2 516 4.8 121.92 .480 12.19
28114A 7 E2 602 4.8 121.92 .480 12.19
28115A 8 E2 688 5.6 142.24 .560 14.22
28116A 9 E2 774 6.0 152.40 .600 15.24
28117A 10 E2 860 6.6 167.64 .660 16.76
28118A 11 E2 946 6.7 170.18 .670 17.02
28119A 12 E2 1032 6.7 170.18 .670 17.02
28120A 13 E2 1118 7.0 177.80 .700 17.78
.060 1.52
28121A 14 E2 1204 7.0 177.80 .700 17.78
28122A 15 E2 1290 7.4 187.96 .740 18.80
28123A 16 E2 1376 7.5 190.50 .750 19.05
28124A 17 E2 1462 7.7 195.58 .770 19.56
28125A 18 E2 1548 7.7 195.58 .770 19.56
28126A 19 E2 1634 7.9 200.66 .790 20.07
28127A 20 E2 1720 8.7 220.98 .870 22.10
28128A 21 E2 1806 8.7 220.98 .870 22.10
28129A 22 E2 1892 8.9 226.06 .890 22.61
28130A 23 E2 1978 8.9 226.06 .890 22.61
28131A 24 E2 2064 9.4 238.76 .940 23.88
28132A 25 E2 2150 9.6 243.84 .960 24.38
28133A 26 E2 2236 9.6 243.84 .960 24.38 .080 2.03
28134A 27 E2 2322 9.6 243.84 .960 24.38
28135A 28 E2 2408 9.9 251.46 .990 25.15
28136A 29 E2 2494 9.9 251.46 .990 25.15
28137A 30 E2 2580 10.2 259.08 1.020 25.91
28630A 37 E2 3182 10.9 276.86 1.090 27.69
28634A 50 E2 4300 13.0 330.20 1.300 33.02

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
12345 A S Bare Tinned Bare Tinned
Add or Modify for Conductor, A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Add “S” for Optional
Base Part No. Insulation, and Jacket. Beldfoil ® Shield C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
See table at right.
G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
BC = Bare Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • TPE = Thermoplastic Elastomer • XLP = Cross-Linked Poly
