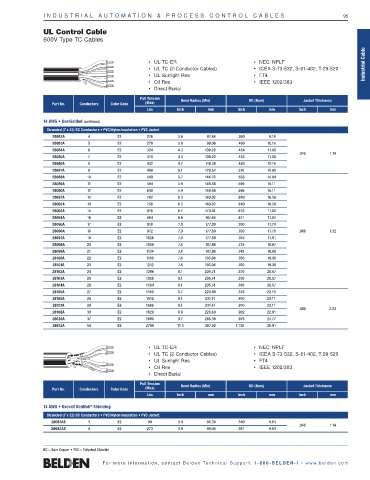

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 95

UL Control Cable
600V Type TC Cables
Industrial Cable
• UL TC-ER • NEC: NPLF
• UL TC (2-Conductor Cables) • ICEA S-73-532, S-61-402, T-29-520
• UL Sunlight Res • FT4
• Oil Res • IEEE 1202/383
• Direct Burial
Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Conductors Color Code (Max)
Lbs Inch mm Inch mm Inch mm

14 AWG • Unshielded (continued)
Stranded (7 x 22) BC Conductors • PVC/Nylon Insulation • PVC Jacket
28082A 4 E2 216 3.6 91.44 .360 9.14
28083A 5 E2 270 3.9 99.06 .400 10.16
28084A 6 E2 324 4.3 109.22 .434 11.02
.045 1.14
28085A 7 E2 378 4.3 109.22 .433 11.00
28086A 8 E2 432 4.7 119.38 .480 12.19
28087A 9 E2 486 5.1 129.54 .510 12.95
28088A 10 E2 540 5.7 144.78 .588 14.94
28089A 11 E2 594 5.9 149.86 .595 15.11
28090A 12 E2 648 5.9 149.86 .595 15.11
28091A 13 E2 702 6.3 160.02 .640 16.26
28092A 14 E2 756 6.3 160.02 .640 16.26
28093A 15 E2 810 6.7 170.18 .670 17.02
28094A 16 E2 864 6.6 167.64 .671 17.04
28095A 17 E2 918 7.0 177.80 .700 17.78
28096A 18 E2 972 7.0 177.80 .700 17.78 .060 1.52
28097A 19 E2 1026 7.0 177.80 .705 17.91
28098A 20 E2 1080 7.4 187.96 .735 18.67
28099A 21 E2 1134 7.4 187.96 .740 18.80
28100A 22 E2 1188 7.6 193.04 .760 19.30
28101A 23 E2 1242 7.6 193.04 .760 19.30
28102A 24 E2 1296 8.1 205.74 .810 20.57
28103A 25 E2 1350 8.1 205.74 .810 20.57
28104A 26 E2 1404 8.1 205.74 .810 20.57
28105A 27 E2 1458 8.7 220.98 .870 22.10
28106A 28 E2 1512 9.1 231.14 .910 23.11
28107A 29 E2 1566 9.1 231.14 .910 23.11
.080 2.03
28108A 30 E2 1620 9.0 228.60 .902 22.91
28629A 37 E2 1998 9.7 246.38 .975 24.77
28912A 50 E2 2700 11.3 287.02 1.138 28.91

• UL TC-ER • NEC: NPLF
• UL TC (2-Conductor Cables) • ICEA S-73-532, S-61-402, T-29-520
• UL Sunlight Res • FT4
• Oil Res • IEEE 1202/383
• Direct Burial
Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Conductors Color Code (Max)
Lbs Inch mm Inch mm Inch mm

14 AWG • Overall Beldfoil Shielding
®
Stranded (7 x 22) BC Conductors • PVC/Nylon Insulation • PVC Jacket
28081AS 3 E2 99 3.4 86.36 .340 8.64
.045 1.14
28082AS 4 E2 273 3.9 99.06 .391 9.93

BC = Bare Copper • PVC = Polyvinyl Chloride
