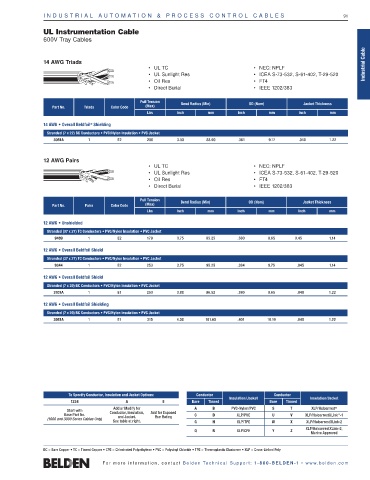

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 91

UL Instrumentation Cable
600V Tray Cables

14 AWG Triads Industrial Cable
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Triads Color Code (Max)
Lbs Inch mm Inch mm Inch mm
®
14 AWG • Overall Beldfoil Shielding
Stranded (7 x 22) BC Conductors • PVC/Nylon Insulation • PVC Jacket
3081A 1 E2 200 3.50 88.90 .361 9.17 .048 1.22

12 AWG Pairs
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Pairs Color Code (Max)
Lbs Inch mm Inch mm Inch mm

12 AWG • Unshielded
Stranded (37 x 27) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9489 1 E2 179 3.75 95.25 .380 9.65 0.45 1.14
12 AWG • Overall Beldfoil Shield
Stranded (37 x 27) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9344 1 E2 253 3.75 95.25 .384 9.75 .045 1.14

12 AWG • Overall Beldfoil Shield
Stranded (7 x 20) BC Conductors • PVC/Nylon Insulation • PVC Jacket
3103A 1 E1 253 3.80 96.52 .380 9.65 .048 1.22
12 AWG • Overall Beldfoil Shielding
Stranded (7 x 20) BC Conductors • PVC/Nylon Insulation • PVC Jacket
3081A 1 E1 315 4.00 101.60 .401 10.19 .048 1.22

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
BC = Bare Copper • TC = Tinned Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • TPE = Thermoplastic Elastomer • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
