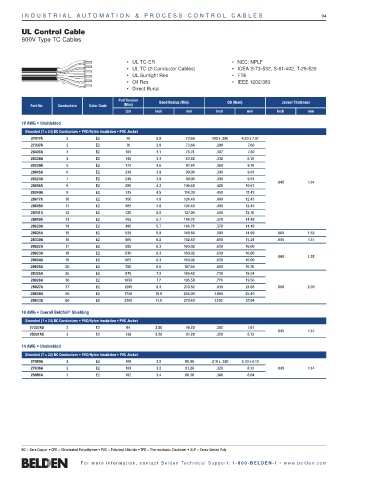

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 94

UL Control Cable
600V Type TC Cables

• UL TC-ER • NEC: NPLF
• UL TC (2-Conductor Cables) • ICEA S-73-532, S-61-402, T-29-520
• UL Sunlight Res • FT4
• Oil Res • IEEE 1202/383
• Direct Burial
Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Conductors Color Code (Max)
Lbs Inch mm Inch mm Inch mm
16 AWG • Unshielded
Stranded (7 x 24) BC Conductors • PVC/Nylon Insulation • PVC Jacket
27917A 2 E2 70 2.9 73.66 .190 x .290 4.83 x 7.37
27337A 2 E2 70 2.9 73.66 .299 7.60
28331A 3 E2 105 3.1 78.74 .307 7.80
28338A 4 E2 140 3.3 83.82 .332 8.18
28339A 5 E2 175 3.6 91.44 .360 9.14
28615A 6 E2 210 3.9 99.06 .390 9.91
28323A 7 E2 245 3.9 99.06 .390 9.91
.045 1.14
28616A 8 E2 280 4.2 106.68 .420 10.67
28340A 9 E2 315 4.5 114.30 .450 11.43
28617A 10 E2 350 4.9 124.46 .490 12.45
28618A 11 E2 385 4.9 124.46 .490 12.45
28341A 12 E2 420 5.0 127.00 .500 12.70
28619A 13 E2 455 5.7 144.78 .570 14.48
28620A 14 E2 490 5.7 144.78 .570 14.48
28621A 15 E2 525 5.9 149.86 .590 14.99 .060 1.52
28330A 16 E2 560 6.0 152.40 .600 15.24 .045 1.14
28622A 17 E2 595 6.3 160.02 .630 16.00
28623A 18 E2 630 6.3 160.02 .630 16.00
.060 1.52
28624A 19 E2 665 6.3 160.02 .630 16.00
28625A 20 E2 700 6.6 167.64 .660 16.76
28324A 25 E2 875 7.3 185.42 .730 18.54
28626A 30 E2 1050 7.7 195.58 .770 19.56
28627A 37 E2 1295 8.3 210.82 .830 21.08 .080 2.03
28628A 50 E2 1750 10.0 254.00 1.000 25.40
28633A 60 E2 2100 11.0 279.40 1.100 27.94
16 AWG • Overall Beldfoil Shielding
®
Stranded (7 x 24) BC Conductors • PVC/Nylon Insulation • PVC Jacket
27337AS 2 E2 94 3.00 76.20 .302 7.67
.045 1.14
28331AS 3 E2 130 3.20 81.28 .320 8.13
14 AWG • Unshielded
Stranded (7 x 22) BC Conductors • PVC/Nylon Insulation • PVC Jacket
27080A 2 E2 108 3.5 88.90 .210 x .320 5.33 x 8.13
27636A 2 E2 108 3.2 81.28 .320 8.13 .045 1.14
28081A 3 E2 162 3.4 86.36 .340 8.64

BC = Bare Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • TPE = Thermoplastic Elastomer • XLP = Cross-Linked Poly
