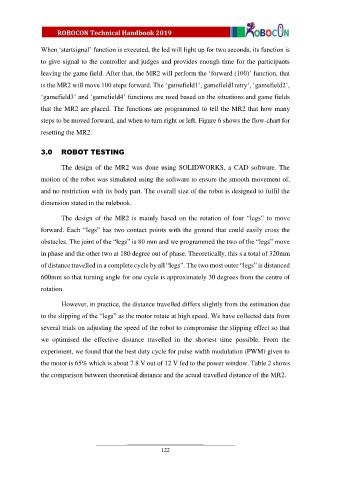

When ‘startsignal’ function is executed, the led will light up for two seconds, its function is

               to give signal to the controller and judges and provides enough time for the participants
               leaving the game field. After that, the MR2 will perform the ‘forward (100)’ function, that

               is the MR2 will move 100 steps forward. The ‘gamefield1’, gamefield1retry’, ‘gamefield2’,
               ‘gamefield3’ and ‘gamefield4’ functions are used based on the situations and game fields

               that the MR2 are placed. The functions are programmed to tell the MR2 that how many

               steps to be moved forward, and when to turn right or left. Figure 6 shows the flow-chart for
               resetting the MR2.


               3.0    ROBOT TESTING


                       The  design  of  the  MR2  was  done  using  SOLIDWORKS,  a  CAD  software.  The
               motion of the robot was simulated using the software to ensure the smooth movement of,

               and no restriction with its body part. The overall size of the robot is designed to fulfil the

               dimension stated in the rulebook.

                       The  design  of  the  MR2  is  mainly  based  on  the  rotation  of  four  “legs”  to  move

               forward. Each “legs” has two contact points with the ground that could easily cross the
               obstacles. The joint of the “legs” is 80 mm and we programmed the two of the “legs” move

               in phase and the other two at 180 degree out of phase. Theoretically, this s a total of 320mm
               of distance travelled in a complete cycle by all “legs”. The two most outer “legs” is distanced

               600mm so that turning angle for one cycle is approximately 30 degrees from the centre of
               rotation.


                       However, in practice, the distance travelled differs slightly from the estimation due
               to the slipping of the “legs” as the motor rotate at high speed. We have collected data from

               several trials on adjusting the speed of the robot to compromise the slipping effect so that

               we  optimised  the  effective  distance  travelled  in  the  shortest  time  possible.  From  the
               experiment, we found that the best duty cycle for pulse width modulation (PWM) given to

               the motor is 65% which is about 7.8 V out of 12 V fed to the power window. Table 2 shows
               the comparison between theoretical distance and the actual travelled distance of the MR2.
