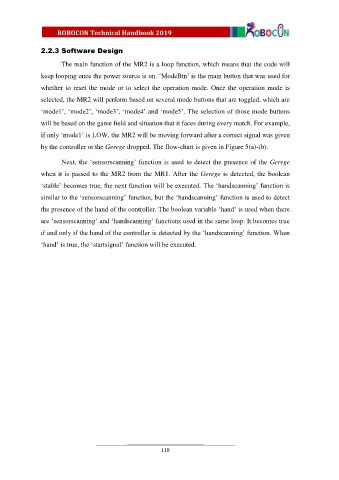

2.2.3 Software Design

The main function of the MR2 is a loop function, which means that the code will

keep looping once the power source is on. ‘ModeBtn’ is the main button that was used for
whether to reset the mode or to select the operation mode. Once the operation mode is

selected, the MR2 will perform based on several mode buttons that are toggled, which are

‘mode1’, ‘mode2’, ‘mode3’, ‘mode4’ and ‘mode5’. The selection of those mode buttons
will be based on the game field and situation that it faces during every match. For example,

if only ‘mode1’ is LOW, the MR2 will be moving forward after a correct signal was given
by the controller or the Gerege dropped. The flow-chart is given in Figure 5(a)-(b).

Next, the ‘sensorscanning’ function is used to detect the presence of the Gerege
when it is passed to the MR2 from the MR1. After the Gerege is detected, the boolean

‘stable’ becomes true, the next function will be executed. The ‘handscanning’ function is
similar to the ‘sensorscanning’ function, but the ‘handscanning’ function is used to detect

the presence of the hand of the controller. The boolean variable ‘hand’ is used when there

are ‘sensorscanning’ and ‘handscanning’ functions used in the same loop. It becomes true
if and only if the hand of the controller is detected by the ‘handscanning’ function. When

‘hand’ is true, the ‘startsignal’ function will be executed.
