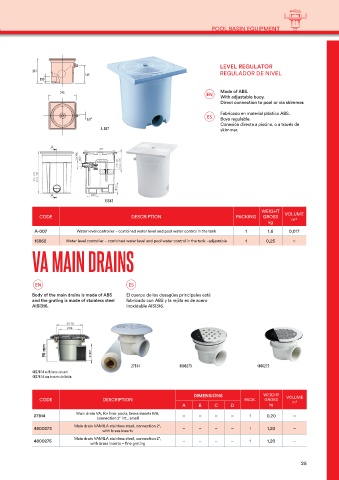

Page 25 - Catalogue IML-VP 2024

POOL BASIN EQUIPMENT

LEVEL REGULATOR
REGULADOR DE NIVEL

Made of ABS.
EN
With adjustable buoy.
Direct connection to pool or via skimmer.
Fabricado en material plástico ABS.
ES Boya regulable.
Conexión directa a piscina, o a través de
A-007 skimmer.

15862

WEIGHT VOLUME
CODE DESCRIPTION PACKING GROSS m3
kg
A-007 Water level controller – combined water level and pool water control in the tank 1 1,6 0,017
15862 Water level controller – combined water level and pool water control in the tank –adjustable 1 0,25 –
VA MAIN DRAINS

EN ES
Body of the main drains is made of ABS El cuerpo de los desagües principales está
and the grating is made of stainless steel fabricado con ABS y la rejilla es de acero
AISI316. inoxidable AISI316.

27814 4800273 4800275
4827814 with brass insert
4827814 con inserto de latón

DIMENSIONS WEIGHT
CODE DESCRIPTION PACK. GROSS VOLUME
m3
A B C D kg
Main drain VA, for liner pools, brass inserts M6,
27814 – – – – 1 0,20 –
connection 2“ int., small
Main drain VAMILA stainless steel, connection 2“,
4800273 – – – – 1 1,20 –
with brass inserts
4800275 Main drain VAMILA stainless steel, connection 2“, – – – – 1 1,20 –
with brass inserts – fine grating

25
