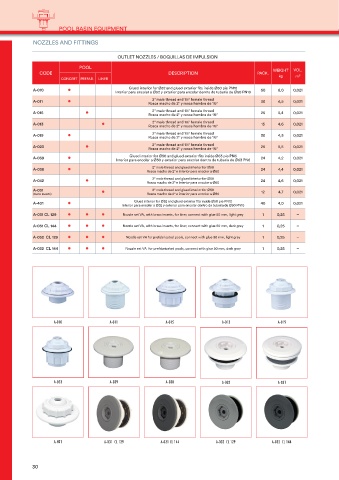

Page 30 - Catalogue IML-VP 2024

POOL BASIN EQUIPMENT
NOZZLES AND FITTINGS

OUTLET NOZZLES / BOQUILLAS DE IMPULSION
POOL
CODE DESCRIPTION PACK. WEIGHT VOL.
CONCRET PREFAB. LINER kg m³
Glued interior for Ø32 and glued exterior fits inside Ø50 pie PN10
A-010 • Interior para encolar a Ø32 y exterior para encolar dentro de tubería de Ø50 PN10 60 6,0 0,021
2" male thread and 1½" female thread
A-011 • Rosca macho de 2" y rosca hembra de 1½" 30 4,5 0,021
2" male thread and 1½" female thread
A-015 • Rosca macho de 2" y rosca hembra de 1½" 25 5,4 0,021
2" male thread and 1½" female thread
A-013 • Rosca macho de 2" y rosca hembra de 1½" 15 4,6 0,021
2" male thread and 1½" female thread
A-019 • Rosca macho de 2" y rosca hembra de 1½" 30 4,5 0,021
2" male thread and 1½" female thread
A-023 • Rosca macho de 2" y rosca hembra de 1½" 25 5,5 0,021
Glued interior for Ø50 and glued exterior fits inside Ø63 pie PN6
A-039 • Interior para encolar a Ø50 y exterior para encolar dentro de tubería de Ø63 PN6 24 4,2 0,021
A-038 • 2" male thread and glued interior for Ø50 24 4,4 0,021
Rosca macho de 2" e interior para encolar a Ø50
2" male thread and glued interior for Ø50
A-032 • Rosca macho de 2" e interior para encolar a Ø50 24 4,6 0,021
A-031 • 2" male thread and glued interior for Ø50 12 4,7 0,021
(metal inserts) Rosca macho de 2" e interior para encolar a Ø50
Glued interior for Ø32 and glued exterior fits inside Ø50 pie PN10
A-401 • Interior para encolar a Ø32 y exterior para encolar dentro de tubería de Ø50 PN10 40 4,0 0,021
A-031 CL 129 • • • Nozzle set VA, with brass inserts, for liner, connect with glue 50 mm, light grey 1 0,25 –

A-031 CL 144 • • • Nozzle set VA, with brass inserts, for liner, connect with glue 50 mm, dark grey 1 0,25 –
A-032 CL 129 • • • Nozzle set VA for prefabricated pools, connect with glue 50 mm, light grey 1 0,25 –

A-032 CL 144 • • • Nozzle set VA for prefabricated pools, connect with glue 50 mm, dark grey 1 0,25 –

A-010 A-011 A-015 A-013 A-019

A-023 A-039 A-038 A-032 A-031

A-401 A-031 CL 129 A-031 CL 144 A-032 CL 129 A-032 CL 144

30
