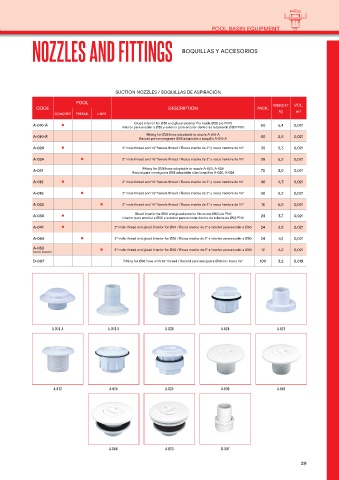

Page 29 - Catalogue IML-VP 2024
P. 29
POOL BASIN EQUIPMENT
NOZZLES AND FITTINGS BOQUILLAS Y ACCESORIOS
SUCTION NOZZLES / BOQUILLAS DE ASPIRACIÓN
POOL
CODE DESCRIPTION PACK. WEIGHT VOL.
kg
CONCRET PREFAB. LINER m³
Glued interior for Ø32 and glued exterior fits inside Ø50 pie PN10
A-010-A • Interior para encolar a Ø32 y exterior para encolar dentro de tubería de Ø50 PN10 60 5,4 0,021
Fitting for Ø38 hose adaptable to nozzle A-010-A
A-010-R Racord para maneguera Ø38 adaptable a boquilla A-010-A 60 2,6 0,021
A-020 • 2" male thread and 1½" female thread / Rosca macho de 2" y rosca hembra de 1½" 35 5,3 0,021
A-024 • 2" male thread and 1½" female thread / Rosca macho de 2" y rosca hembra de 1½" 28 5,2 0,021
A-021 Fitting for Ø38 hose adaptable to nozzle A-020, A-024 75 3,0 0,021
Racord para maneguera Ø38 adaptable a las boquillas A-020, A-024
A-012 • 2" male thread and 1½" female thread / Rosca macho de 2" y rosca hembra de 1½" 40 4,3 0,021
A-016 • 2" male thread and 1½" female thread / Rosca macho de 2" y rosca hembra de 1½" 30 5,2 0,021
A-025 • 2" male thread and 1½" female thread / Rosca macho de 2" y rosca hembra de 1½" 18 5,0 0,021
Glued interior for Ø50 and glued exterior fits inside Ø63 pie PN6
A-030 • Interior para encolar a Ø50 y exterior para encolar dentro de tubería de Ø63 PN6 24 3,7 0,021
A-041 • 2" male thread and glued interior for Ø50 / Rosca macho de 2" e interior para encolar a Ø50 24 3,8 0,021
A-064 • 2" male thread and glued interior for Ø50 / Rosca macho de 2" e interior para encolar a Ø50 24 4,1 0,021
A-053 • 2" male thread and glued interior for Ø50 / Rosca macho de 2" e interior para encolar a Ø50 12 4,2 0,021
(metal inserts)
D-007 Fitting for Ø38 hose with 1½" thread / Racord para manguera Ø38 con rosca 1½" 100 3,2 0,019
A-010-A A-010-R A-020 A-024 A-021
A-012 A-016 A-025 A-030 A-041
A-064 A-053 D-007
29
