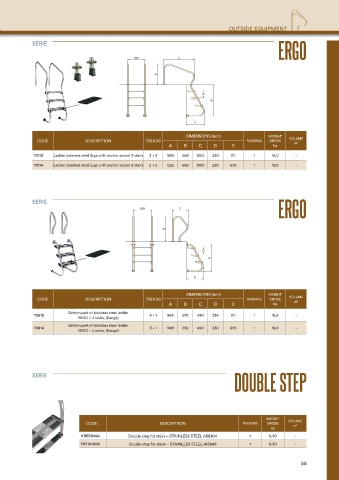

Page 55 - Catalogue IML-VP 2024

OUTSIDE EQUIPMENT
ERGO
SERIE

500 C

B

D
A

E

DIMENSIONS (mm) WEIGHT
CODE DESCRIPTION TREADS PACKING GROSS VOLUME
m3
A B C D E kg
73113 Ladder stainless steel Ergo with anchor socket 3 stairs 3 + 3 1005 665 1000 230 511 1 16,0 –
73114 Ladder stainless steel Ergo with anchor socket 4 stairs 5 + 5 1225 665 1000 230 630 1 18,0 –

ERGO
SERIE
500 C

B

D
A

E

DIMENSIONS (mm) WEIGHT
CODE DESCRIPTION TREADS PACKING GROSS VOLUME
m3
A B C D E kg
Bottom part of stainless steel ladder
73913 4 + 1 865 632 490 230 511 1 18,0 –
ERGO – 3 stairs, (flange)
Bottom part of stainless steel ladder
73914 5 + 1 1085 632 490 230 630 1 18,0 –
ERGO – 4 stairs, (flange)

DOUBLE STEP
SERIE

WEIGHT VOLUME
CODE DESCRIPTION PACKING GROSS m3
kg
KRES014A Double step for stairs – STAINLESS STEEL AISI304 1 0,30 –
F87101606 Double step for stairs – STAINLESS STEEL AISI316 1 0,30 –

55
