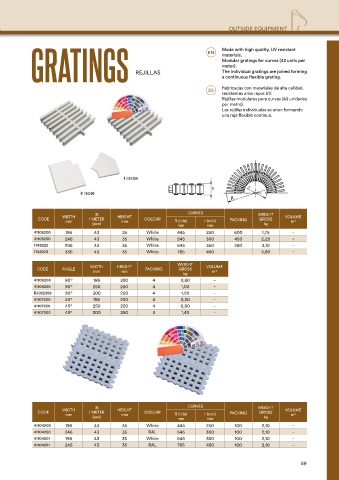

Page 59 - Catalogue IML-VP 2024

OUTSIDE EQUIPMENT
GRATINGS REJILLAS EN Made with high quality, UV resistant

materials.
Modular gratings for curves (43 units per
meter).
The individual gratings are joined forming
a continuous flexible grating.

Fabricadas con materiales de alta calidad,
ES
resistentes a los rayos UV.
Rejillas modulares para curvas (43 unidades
por metro).
Las rejillas individuales se unen formando
una reja flexible continua.

41107200

41106200

IN CURVES WEIGHT
WIDTH HEIGHT VOLUME
CODE 1 METER COLOUR PACKING GROSS
mm mm R (min) r (min) m3
(pcs) kg
mm mm
41105200 196 43 35 White 445 250 600 1,75 –
41105250 246 43 35 White 545 300 450 2,25 –
1748222 296 43 35 White 645 350 280 3,10 –
1748223 336 43 35 White 785 450 3,80 –
WEIGHT
WIDTH HEIGHT VOLUME
CODE ANGLE PACKING GROSS
mm mm m3
kg
41106200 90º 196 250 4 0,80 –
41106250 90º 250 250 4 1,00 –
RJ032385 90º 300 250 4 1,20 –
41107200 45º 196 250 4 0,50 –
41107250 45º 250 250 4 0,90 –
41107300 45º 300 250 4 1,40 –

IN CURVES WEIGHT
WIDTH HEIGHT VOLUME
CODE 1 METER COLOUR PACKING GROSS
mm mm R (min) r (min) m3
(pcs) mm mm kg
41104200 196 43 35 White 445 250 100 2,10 –
41104250 246 43 35 RAL 545 300 100 2,10 –
41104201 196 43 35 White 645 350 100 2,10 –
41104251 246 43 35 RAL 785 450 100 2,10 –
