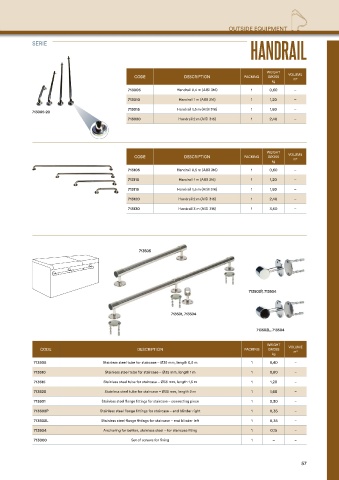

Page 57 - Catalogue IML-VP 2024

OUTSIDE EQUIPMENT
HANDRAIL
SERIE

WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
713005 Handrail 0,4 m (AISI 316) 1 0,60 –
713010 Handrail 1 m (AISI 316) 1 1,20 –
713015 Handrail 1,5 m (AISI 316) 1 1,80 –
713005-20
713020 Handrail 2 m (AISI 316) 1 2,40 –

WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
713105 Handrail 0,5 m (AISI 316) 1 0,60 –
713110 Handrail 1 m (AISI 316) 1 1,20 –
713115 Handrail 1,5 m (AISI 316) 1 1,80 –
713120 Handrail 2 m (AISI 316) 1 2,40 –
713130 Handrail 3 m (AISI 316) 1 3,60 –

713505

713502P, 713504

713501, 713504

713502L, 713504

WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
713505 Stainless steel tube for staircase – Ø35 mm, length 0,5 m 1 0,40 –
713510 Stainless steel tube for staircase – Ø35 mm, length 1 m 1 0,80 –
713515 Stainless steel tube for staircase – Ø35 mm, length 1,5 m 1 1,20 –
713520 Stainless steel tube for staircase – Ø35 mm, length 2 m 1 1,60 –
713501 Stainless steel flange fittings for staircase – connecting piece 1 0,30 –

713502P Stainless steel flange fittings for staircase – end blinder right 1 0,35 –
713502L Stainless steel flange fittings for staircase – end blinder left 1 0,35 –
713504 Anchoring for betton, stainless steel – for staircase fiting 1 0,15 –
713000 Set of screws for fixing 1 – –

57
