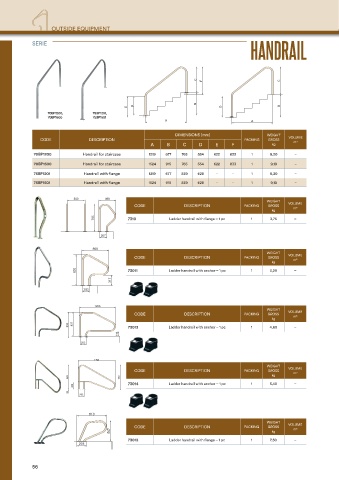

Page 56 - Catalogue IML-VP 2024

OUTSIDE EQUIPMENT
HANDRAIL
SERIE

C F C

B
E D D B
70BP1200, 75BP1201,
70BP1500 75BP1501
A A

DIMENSIONS (mm) WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
A B C D E F kg
70BP1200 Handrail for staircase 1219 677 765 554 622 833 1 8,20 –
70BP1500 Handrail for staircase 1524 915 765 554 622 833 1 9,10 –

75BP1201 Handrail with flange 1219 677 839 628 - - 1 8,20 –
75BP1501 Handrail with flange 1524 915 839 628 - - 1 9,10 –

500 490
WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
795 7310 Ladder handrail with flange – 1 pc 1 3,75 –

207

800
WEIGHT VOLUME
CODE DESCRIPTION PACKING GROSS m3
kg
920 73011 Ladder handrail with anchor – 1 pc 1 3,20 –
317
203

1255
WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
905 837 73013 Ladder handrail with anchor – 1 pc 1 4,60 –
164
203

1405
WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
kg
920 953
73014 Ladder handrail with anchor – 1 pc 1 5,40 –
260
33
203
810
WEIGHT VOLUME
CODE DESCRIPTION PACKING GROSS m3
567 kg
73012 Ladder handrail with flange – 1 pc 1 7,50 –
203

56
