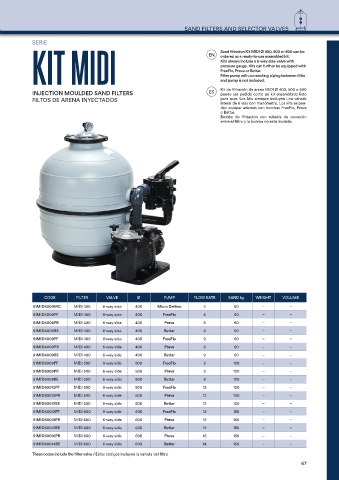

Page 67 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SAND FILTERS AND SELECTOR VALVES
SERIE Sand filtration Kit MIDI Ø 400, 500 or 600 can be
KIT MIDI EN ordered as a ready-to-use assembled kit.

Kits always include a 6-way side-valve with
pressure gauge. Kits can further be equipped with
FreeFlo, Preva or Bettar.
Filter pump with connecting piping between filter

Kit de filtración de arena MIDI Ø 400, 500 o 600
INJECTION MOULDED SAND FILTERS ES and pump is not included.
puede ser pedido como un kit ensamblado listo
FILTOS DE ARENA INYECTADOS para usar. Los kits siempre incluyen una válvula
lateral de 6 vías con manómetro. Los kits se pue-
den equipar además con bombas FreeFlo, Preva
o Bettar.
Bomba de filtración con tubería de conexión

entre el filtro y la bomba no está incluida.

CODE FILTER VALVE Ø PUMP FLOW RATE SAND kg WEIGHT VOLUME

51MID4004MC MIDI 400 6-way side 400 Micro Delfino 4 60 – –
51MID4006FF MIDI 400 6-way side 400 FreeFlo 6 60 – –
51MID4006PR MIDI 400 6-way side 400 Preva 6 60 – –
51MID4006BE MIDI 400 6-way side 400 Bettar 6 60 – –
51MID4009FF MIDI 400 6-way side 400 FreeFlo 9 60 – –
51MID4009PR MIDI 400 6-way side 400 Preva 9 60 – –
51MID4009BE MIDI 400 6-way side 400 Bettar 9 60 – –
51MID5009FF MIDI 500 6-way side 500 FreeFlo 9 100 – –
51MID5009PR MIDI 500 6-way side 500 Preva 9 100 – –
51MID5009BE MIDI 500 6-way side 500 Bettar 9 100 – –
51MID50012FF MIDI 500 6-way side 500 FreeFlo 12 100 – –
51MID50012PR MIDI 500 6-way side 500 Preva 12 100 – –
51MID50012BE MIDI 500 6-way side 500 Bettar 12 100 – –
51MID60012FF MIDI 600 6-way side 600 FreeFlo 12 150 – –
51MID60012PR MIDI 600 6-way side 600 Preva 12 150 – –
51MID60012BE MIDI 600 6-way side 600 Bettar 12 150 – –
51MID60016PR MIDI 600 6-way side 600 Preva 16 150 – –
51MID60014BE MIDI 600 6-way side 600 Bettar 14 150 – –
These codes include the filter valve /Estos códigos incluyen la válvula del filtro

67
