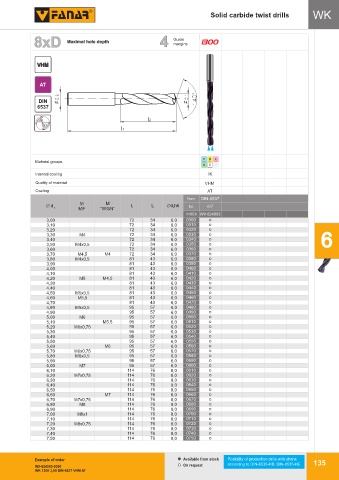

Solid carbide twist drills WK

8xD Maximal hole depth 4 Guide 1300
margins

VHM

AT

DIN
6537

P M K
Material groups
N S H
Internal cooling IK
Quality of material VHM
Coating AT
Nakrój / Chamfer Norm DIN-6537
M M
Ć d l 1 l 2 Ćd h6 Tol. m7
1 MF "WGN" 2
INDEX W9-624063
3,00 72 34 6,0 0300
3,10 72 34 6,0 0310
3,20 72 34 6,0 0320
3,30 M4 72 34 6,0 0330
3,40 72 34 6,0 0340 6 6
3,50 M4x0,5 72 34 6,0 0350
3,60 72 34 6,0 0360
3,70 M4,5 M4 72 34 6,0 0370
3,80 M4x0,5 81 43 6,0 0380
3,90 81 43 6,0 0390
4,00 81 43 6,0 0400
4,10 81 43 6,0 0410
4,20 M5 M4,5 81 43 6,0 0420 7
4,30 81 43 6,0 0430
4,40 81 43 6,0 0440
4,50 M5x0,5 81 43 6,0 0450
4,60 M5,5 81 43 6,0 0460
4,70 81 43 6,0 0470
4,80 M5x0,5 95 57 6,0 0480
4,90 95 57 6,0 0490
5,00 M6 95 57 6,0 0500
5,10 M5,5 95 57 6,0 0510
5,20 M6x0,75 95 57 6,0 0520
5,30 95 57 6,0 0530
5,40 95 57 6,0 0540
5,50 95 57 6,0 0550
5,60 M6 95 57 6,0 0560
5,70 M6x0,75 95 57 6,0 0570
5,80 M6x0,5 95 57 6,0 0580
5,90 95 57 6,0 0590
6,00 M7 95 57 6,0 0600
6,10 114 76 8,0 0610
6,20 M7x0,75 114 76 8,0 0620
6,30 114 76 8,0 0630
6,40 114 76 8,0 0640
6,50 114 76 8,0 0650
6,60 M7 114 76 8,0 0660
6,70 M7x0,75 114 76 8,0 0670
6,80 M8 114 76 8,0 0680
6,90 114 76 8,0 0690
7,00 M8x1 114 76 8,0 0700
7,10 114 76 8,0 0710
7,20 M8x0,75 114 76 8,0 0720
7,30 114 76 8,0 0730
7,40 114 76 8,0 0740
7,50 114 76 8,0 0750

Example of order Available from stock Posibility of production drills with shank 135
W9-624063-0300 On request according to DIN-6535-HB, DIN-6535-HE
WK 1300 3,00 DIN-6537 VHM AT
