P. 191

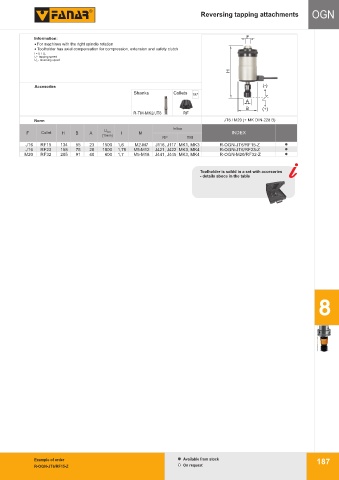

Reversing tapping attachments OGN
Information:
· For machines with the right spindle rotation
· Toolholder has axial compensation for compression, extension and safety clutch
l = U / U n
U - tapping speed
U - reversing speed
n
Accesories (-)
Shanks Collets 197
(+)
R-TM-MK2/JT6 RF
Norm JT6 / M20 (+ MK DIN-228 B)
In box
F Collet H B A U max I M INDEX
[1/min]
RF TM
JT6 RF15 134 55 23 1500 1,6 M2-M7 J116, J117 MK1, MK3 R-OGN-JT6/RF15-Z
JT6 RF23 158 75 28 1000 1,75 M5-M12 J421, J422 MK3, MK4 R-OGN-JT6/RF23-Z
M20 RF32 205 91 40 600 1,7 M5-M18 J441, J445 MK3, MK4 R-OGN-M20/RF32-Z
Toolholder is soldd in a set with accesories
- details aboce in the table
8 8
Example of order Available from stock 187
R-OGN-JT6/RF15-Z On request
