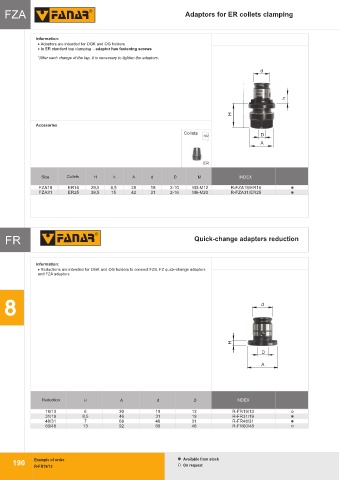

Page 194 - Fanar

FZA Adaptors for ER collets clamping

Information:
· Adaptors are intended for OGK and OG holders
· In ER standard tap clamping - adaptor has fastening screws

*After each change of the tap, it is necessary to tighten the adaptors.

d

h

H
Accesories
Collets
192 D
A

ER

Size Collets H h A d D M INDEX

FZA19 ER16 29,5 8,5 28 19 2-10 M3-M12 R-FZA19/ER16
FZA31 ER25 38,5 15 42 31 2-16 M6-M20 R-FZA31/ER25

FR FZA
FR Quick-change adapters reduction

Information:
· Reductions are intended for OGK and OG holders to connect FZS, FZ quick-change adapters
and FZA adaptors

8 d

H
D

A

Reduction H A d D INDEX

19/13 6 30 19 13 R-FR19/13
31/19 8,5 46 31 19 R-FR31/19
48/31 7 68 48 31 R-FR48/31
60/48 13 92 60 48 R-FR60/48

190 Example of order Available from stock
190
R-FR19/13 On request
