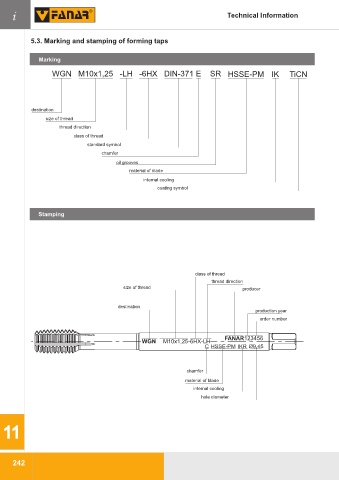

5.3. Marking and stamping of forming taps

Marking

WGN M10x1,25 -LH -6HX DIN-371 E SR HSSE-PM IK TiCN

destination
size of thread
thread direction
class of thread
standard symbol
chamfer
oil grooves
material of blade
internal cooling
coating symbol

Cechowanie
Stamping

class of thread
thread direction
size of thread producer

destination
production year
order number

FANAR 123456
WGN M10x1,25-6HX-LH

chamfer
material of blade
internal cooling
hole diameter
