SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES

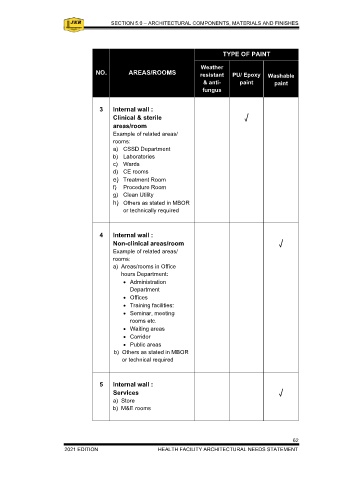

TYPE OF PAINT 5.13.18 All colour scheme proposals must be submitted to the Client for approval
and shall be forwarded to the PD’s concurrence before application on-site.
Weather
NO. AREAS/ROOMS resistant PU/ Epoxy Washable 5.13.19 The successful tenderer shall submit three (3) options of external and
& anti- paint paint internal colour schemes comprising a minimum of two (2) elevations (for
fungus external) and complete with sample boards for the PD’s approval.
3 Internal wall :
Clinical & sterile √ 5.14 WATERPROOFING
areas/room
Example of related areas/ 5.14.1 All waterproofing works shall comply with the latest JKR Standard
rooms: Specification for Building Works.
a) CSSD Department
b) Laboratories 5.14.2 Reinforced concrete flat roofs and gutters, where applicable, shall use any
c) Wards approved waterproofing.
d) CE rooms
e) Treatment Room 5.14.3 Wet area floors such as toilets, bathrooms, kitchen, ablution, and pantry,
f) Procedure Room where applicable, shall use any of the following types of waterproofing:
g) Clean Utility
h) Others as stated in MBOR
or technically required a) Cementitious
b) Crystallisation
4 Internal wall : 5.14.4 Waterproofing for toilet walls, bathrooms, ablution, and wet areas shall
Non-clinical areas/room √ extend to 2100 mm to prevent dampness.
Example of related areas/
rooms: 5.14.5 Damp proof course and/or waterproofing membranes shall be provided to
a) Areas/rooms in Office retaining walls, basements, and all ground floor areas, especially with
hours Department: finishes such as vinyl, parquet, timber strip, and carpet. The damp proof
• Administration course shall be provided with an approved waterproofing proprietary
Department system.
• Offices
• Training facilities: 5.14.6 Waterproofing membrane, wherever used, shall be turned up at the curbs,
• Seminar, meeting parapets and turned into a sealing chase. Membrane collars and sleeves
rooms etc. shall be provided and properly sealed at pipes and conduit areas, per
• Waiting areas approved waterproofing proprietary system.
• Corridor
• Public areas 5.14.7 Waterproofing membrane, wherever specified, shall reflect and emit heat
b) Others as stated in MBOR
or technical required from the surface and also prevent fungus growth.
5.14.8 All external planter boxes, wherever specified, shall be applied with
5 Internal wall : approved waterproofing complete with concealed proper drainage outlet
Services √ into the nearest perimeter drain.
a) Store
b) M&E rooms
