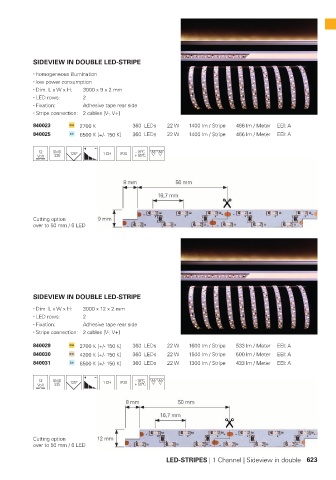

Page 624 - Deko-Light Light Impressions 2019-20
P. 624
SIDEVIEW IN DOUBLE LED-STRIPE
homogeneous illumination
low power consumption
Dim. L x W x H: 3000 x 9 x 2 mm
LED rows: 2
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840023 2700 K 360 LEDs 22 W 1400 lm / Stripe 466 lm / Meter EEI: A
840025 6500 K [+/- 150 K] 360 LEDs 22 W 1400 lm / Stripe 466 lm / Meter EEI: A
12 SMD 120° 1 CH IP20 - 15°C M M
335 + 50°C
Cutting option
over to 50 mm / 6 LED
SIDEVIEW IN DOUBLE LED-STRIPE
Dim. L x W x H: 3000 x 12 x 2 mm
LED rows: 2
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840029 2700 K [+/- 150 K] 360 LEDs 22 W 1600 lm / Stripe 533 lm / Meter EEI: A
840030 4200 K [+/- 150 K] 360 LEDs 22 W 1500 lm / Stripe 500 lm / Meter EEI: A
840031 6500 K [+/- 150 K] 360 LEDs 22 W 1300 lm / Stripe 433 lm / Meter EEI: A
12 SMD 120° 1 CH IP20 - 15°C M M
335 + 50°C
Cutting option
over to 50 mm / 6 LED
LED-STRIPES | 1 Channel | Sideview in double 623
