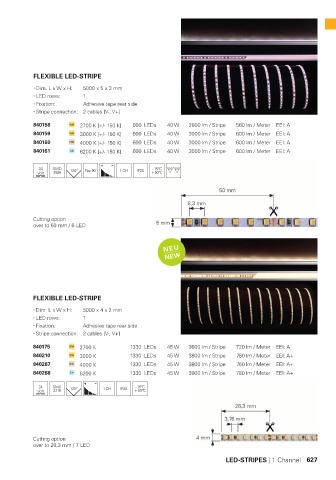

Page 628 - Deko-Light Light Impressions 2019-20
P. 628
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 5 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840158 2700 K [+/- 150 K] 600 LEDs 40 W 2800 lm / Stripe 560 lm / Meter EEI: A
840159 3000 K [+/- 150 K] 600 LEDs 40 W 3000 lm / Stripe 600 lm / Meter EEI: A
840160 4000 K [+/- 150 K] 600 LEDs 40 W 3000 lm / Stripe 600 lm / Meter EEI: A
840161 6200 K [+/- 150 K] 600 LEDs 40 W 3000 lm / Stripe 600 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C M M
3528 + 50°C
Cutting option
over to 50 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 4 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840175 2700 K 1330 LEDs 45 W 3600 lm / Stripe 720 lm / Meter EEI: A
840210 3000 K 1330 LEDs 45 W 3800 lm / Stripe 760 lm / Meter EEI: A+
840267 4000 K 1330 LEDs 45 W 3800 lm / Stripe 760 lm / Meter EEI: A+
840268 6200 K 1330 LEDs 45 W 3900 lm / Stripe 780 lm / Meter EEI: A+
24 SMD - 15°C
2216 120° 1 CH IP20 + 50°C
Cutting option
over to 26,3 mm / 7 LED
LED-STRIPES | 1 Channel 627
