Page 626 - Deko-Light Light Impressions 2019-20
P. 626

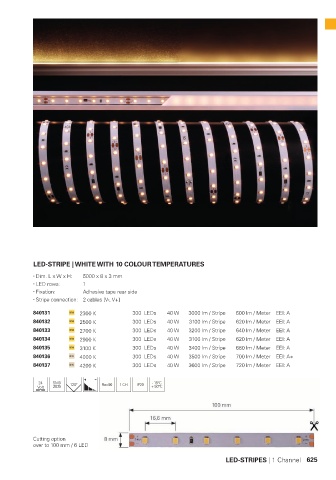

LED-STRIPE | WHITE WITH 10 COLOUR TEMPERATURES
Dim. L x W x H: 5000 x 8 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840131 2300 K 300 LEDs 40 W 3000 lm / Stripe 600 lm / Meter EEI: A
With the kind support of Leicht Küchenstudio / CS-Elektroanlagen Ettlingen
840132 2500 K 300 LEDs 40 W 3100 lm / Stripe 620 lm / Meter EEI: A
840133 2700 K 300 LEDs 40 W 3200 lm / Stripe 640 lm / Meter EEI: A
840134 2900 K 300 LEDs 40 W 3100 lm / Stripe 620 lm / Meter EEI: A
840135 3100 K 300 LEDs 40 W 3400 lm / Stripe 680 lm / Meter EEI: A
840136 4000 K 300 LEDs 40 W 3500 lm / Stripe 700 lm / Meter EEI: A+
840137 4200 K 300 LEDs 40 W 3600 lm / Stripe 720 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C
2835 + 50°C
Cutting option
over to 100 mm / 6 LED
LED-STRIPES | 1 Channel 625
