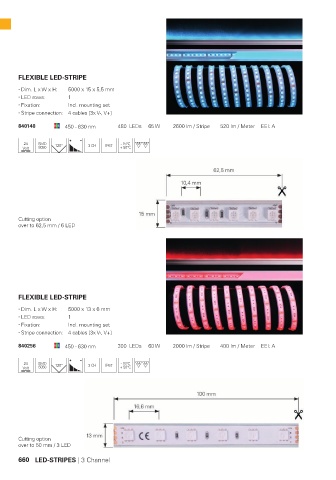

Page 661 - Deko-Light Light Impressions 2019-20
P. 661
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 15 x 5,5 mm
LED rows: 1
Fixation: Incl. mounting set
Stripe connection: 4 cables [3x V-, V+]
840148 450 - 630 nm 480 LEDs 65 W 2600 lm / Stripe 520 lm / Meter EEI: A
24 SMD - 15°C M M
5050 120° 3 CH IP67 + 50°C
Cutting option
over to 62,5 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 13 x 6 mm
LED rows: 1
Fixation: Incl. mounting set
Stripe connection: 4 cables [3x V-, V+]
840256 450 - 630 nm 300 LEDs 60 W 2000 lm / Stripe 400 lm / Meter EEI: A
24 SMD 120° 3 CH IP67 - 15°C M M
5050 + 50°C
Cutting option
over to 50 mm / 3 LED
660 LED-STRIPES | 3 Channel
