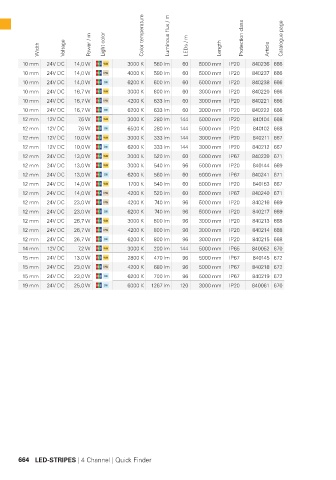

Page 665 - Deko-Light Light Impressions 2019-20

Width Voltage Power / m Light color Color temperature Luminous flux / m LEDs / m Length Protection class Article Catalogue page

10 mm 24V DC 14,0 W 3000 K 580 lm 60 5000 mm IP20 840236 666
10 mm 24V DC 14,0 W 4000 K 590 lm 60 5000 mm IP20 840237 666
10 mm 24V DC 14,0 W 6200 K 600 lm 60 5000 mm IP20 840238 666
10 mm 24V DC 16,7 W 3000 K 600 lm 60 3000 mm IP20 840220 666
10 mm 24V DC 16,7 W 4200 K 633 lm 60 3000 mm IP20 840221 666
10 mm 24V DC 16,7 W 6200 K 633 lm 60 3000 mm IP20 840222 666
12 mm 12V DC 7,6 W 3000 K 280 lm 144 5000 mm IP20 840104 668
12 mm 12V DC 7,6 W 6500 K 280 lm 144 5000 mm IP20 840102 668
12 mm 12V DC 10,0 W 3000 K 333 lm 144 3000 mm IP20 840211 667
12 mm 12V DC 10,0 W 6200 K 333 lm 144 3000 mm IP20 840212 667
12 mm 24V DC 13,0 W 3000 K 520 lm 60 5000 mm IP67 840239 671
12 mm 24V DC 13,0 W 3000 K 540 lm 96 5000 mm IP20 840144 669
12 mm 24V DC 13,0 W 6200 K 560 lm 60 5000 mm IP67 840241 671
12 mm 24V DC 14,0 W 1700 K 540 lm 60 5000 mm IP20 840153 667
12 mm 24V DC 14,0 W 4200 K 520 lm 60 5000 mm IP67 840240 671
12 mm 24V DC 23,0 W 4200 K 740 lm 96 5000 mm IP20 840216 669
12 mm 24V DC 23,0 W 6200 K 740 lm 96 5000 mm IP20 840217 669
12 mm 24V DC 26,7 W 3000 K 800 lm 96 3000 mm IP20 840213 668
12 mm 24V DC 26,7 W 4200 K 800 lm 96 3000 mm IP20 840214 668
12 mm 24V DC 26,7 W 6200 K 800 lm 96 3000 mm IP20 840215 668
14 mm 12V DC 7,2 W 3000 K 200 lm 144 5000 mm IP65 840052 670
15 mm 24V DC 13,0 W 2800 K 470 lm 96 5000 mm IP67 840145 672
15 mm 24V DC 23,0 W 4200 K 680 lm 96 5000 mm IP67 840218 672
15 mm 24V DC 23,0 W 6200 K 700 lm 96 5000 mm IP67 840219 672
19 mm 24V DC 25,0 W 6000 K 1267 lm 120 3000 mm IP20 840061 670

664 LED-STRIPES | 4 Channel | Quick Finder
