P. 678

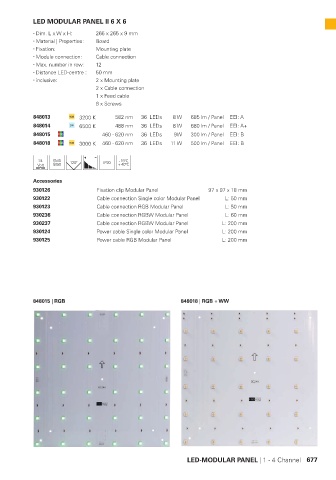

LED MODULAR PANEL II 6 X 6
Dim. L x W x H: 265 x 265 x 9 mm
Material | Properties: Board
Fixation: Mounting plate
Module connection: Cable connection
Max. number in row: 12
Distance LED-centre : 50 mm
inclusive: 2 x Mounting plate
2 x Cable connection
1 x Feed cable
8 x Screws
848013 3200 K 582 nm 36 LEDs 8 W 685 lm / Panel EEI: A
848014 6500 K 488 nm 36 LEDs 8 W 680 lm / Panel EEI: A+
848015 460 - 620 nm 36 LEDs 9W 300 lm / Panel EEI: B
848018 3000 K 460 - 620 nm 36 LEDs 11 W 500 lm / Panel EEI: B
24 SMD - 15°C
5050 120° IP20 + 40°C
Accessories
930126 Fixation clip Modular Panel 97 x 97 x 18 mm
930122 Cable connection Single color Modular Panel L: 50 mm
930123 Cable connection RGB Modular Panel L: 50 mm
930236 Cable connection RGBW Modular Panel L: 60 mm
930237 Cable connection RGBW Modular Panel L: 200 mm
930124 Power cable Single color Modular Panel L: 200 mm
930125 Power cable RGB Modular Panel L: 200 mm
848015 | RGB 848018 | RGB + WW
LED-MODULAR PANEL | 1 - 4 Channel 677
