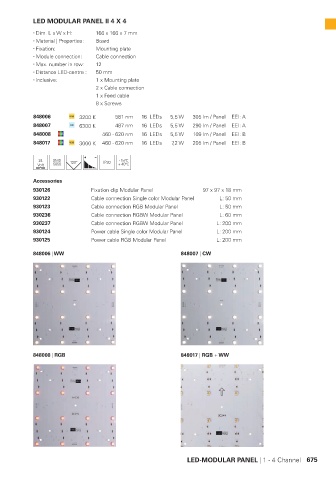

Page 676 - Deko-Light Light Impressions 2019-20
P. 676
LED MODULAR PANEL II 4 X 4
Dim. L x W x H: 166 x 166 x 7 mm
Material | Properties: Board
Fixation: Mounting plate
Module connection: Cable connection
Max. number in row: 12
Distance LED-centre : 50 mm
inclusive: 1 x Mounting plate
2 x Cable connection
1 x Feed cable
8 x Screws
848006 3200 K 581 nm 16 LEDs 5,5 W 305 lm / Panel EEI: A
848007 6300 K 487 nm 16 LEDs 5,5 W 290 lm / Panel EEI: A
848008 460 - 620 nm 16 LEDs 5,5 W 109 lm / Panel EEI: B
848017 3000 K 460 - 620 nm 16 LEDs 7,2 W 205 lm / Panel EEI: B
24 SMD 120° IP20 - 15°C
5050 + 40°C
Accessories
930126 Fixation clip Modular Panel 97 x 97 x 18 mm
930122 Cable connection Single color Modular Panel L: 50 mm
930123 Cable connection RGB Modular Panel L: 50 mm
930236 Cable connection RGBW Modular Panel L: 60 mm
930237 Cable connection RGBW Modular Panel L: 200 mm
930124 Power cable Single color Modular Panel L: 200 mm
930125 Power cable RGB Modular Panel L: 200 mm
848006 | WW 848007 | CW
848008 | RGB 848017 | RGB + WW
LED-MODULAR PANEL | 1 - 4 Channel 675
